STIDP880 - iDP to LVDS converter

STMicroelectronics

📥 Download Datasheet

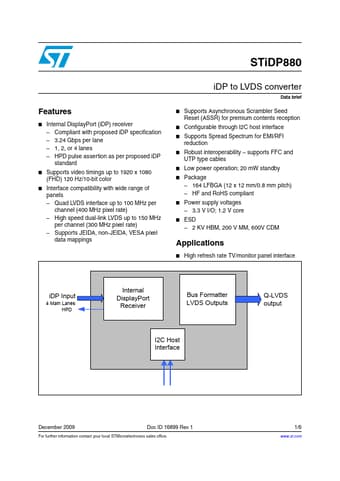

STIDP880 Datasheet Preview — Preview of STIDP880 PDF

Datasheet Details

Part number	STIDP880
Manufacturer	STMicroelectronics
File Size	154.55 KB
Description	iDP to LVDS converter
Datasheet	STIDP880_STMicroelectronics.pdf

STIDP880 Product details

Description

STiDP880 1 Description The STiDP880 is an internal DisplayPort to high-speed Dual LVDS/Quad LVDS converter IC targeted for the interconnection between a TV controller SOC and panel TCON.STiDP880 is a proposed VESA iDP compliant device, implementing a single link internal DisplayPort input comprising four Main Link lanes and HPD, which operates without a sideband channel.This device supports the proposed standard iDP link rate of 3.24 Gbps per lane with a total link bandwidth of 12.96 Gbps,

Features

Supports Asynchronous Scrambler Seed Reset (ASSR) for premium contents reception Configurable through I2C host interface Supports Spread Spectrum for EMI/RFI reduction Robust interoperability.
supports FFC and UTP type cables Low power operation; 20 mW standby Package.
164 LFBGA (12 x 12 mm/0.8 mm pitch).
HF and RoHS compliant Power supply voltages.
3.3 V I/O; 1.2 V core ESD.
2 KV HBM, 200 V MM, 600V CDM In.
