STI90N4F3 - Power MOSFET

STMicroelectronics

The STI90N4F3 by STMicroelectronics is a Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

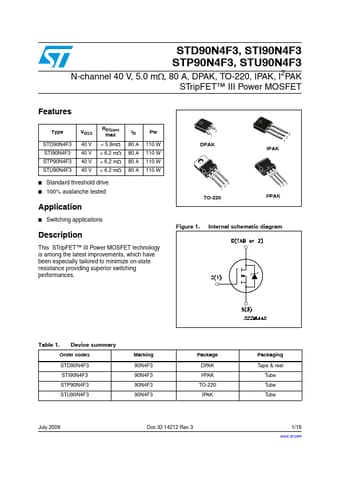

STI90N4F3 Power MOSFET by STMicroelectronics - Datasheet Preview — Official preview page of the **STI90N4F3** Power MOSFET datasheet (STMicroelectronics).

Datasheet Details

Part number	STI90N4F3
Manufacturer	STMicroelectronics
File Size	770.84 KB
Description	Power MOSFET
Datasheet	STI90N4F3_STMicroelectronics.pdf
Additional preview pages of the STI90N4F3 datasheet.

STI90N4F3 Product details

Description

This n-channel enhancement mode Power MOSFET is the latest refinement of STMicroelectronics unique “single feature size“ strip-based process with less critical alignment steps and therefore a remarkable manufacturing reproducibility.

Features

Type STD90N4F3 STI90N4F3 STP90N4F3 STU90N4F3.
VDSS 40 V 40 V 40 V 40 V RDS(on) max < 6.5 mΩ < 6.5 mΩ < 6.5 mΩ < 6.5 mΩ ID 80 A 80 A 80 A 80 A Pw 1 3 3 2 1 110 W 110 W 110 W 110 W DPAK IPAK Standard threshold drive 100% avalanche tested 1 2 3 3 12.
