STHU36N60DM6AG N-channel Power MOSFET

STHU36N60DM6AG Description

STHU36N60DM6AG Datasheet Automotive-grade N-channel 600 V, 84 mΩ typ., 29 A MDmesh DM6 Power MOSFET in an HU3PAK package TAB 7 1 HU3PAK Drain(TAB) F.
This high-voltage N-channel Power MOSFET is part of the MDmesh DM6 fastrecovery diode series.

STHU36N60DM6AG Features

* Order code STHU36N60DM6AG VDS 600 V RDS(on) max. 99 mΩ ID 29 A
* AEC-Q101 qualified
* Fast-recovery body diode
* Lower RDS(on) per area vs previous generation
* Low gate charge, input capacitance and resistance
* 100% avalanche tested
* Extremely h

📥 Download Datasheet

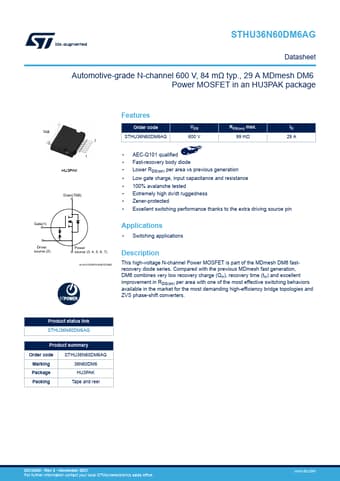

Preview of STHU36N60DM6AG PDF
datasheet Preview Page 2 datasheet Preview Page 3
