STHU32N65DM6AG N-channel Power MOSFET

STHU32N65DM6AG Description

STHU32N65DM6AG Datasheet Automotive-grade N-channel 650 V, 83 mΩ typ., 37 A MDmesh DM6 Power MOSFET in an HU3PAK package .
This high-voltage N-channel Power MOSFET is part of the MDmesh DM6 fastrecovery diode series.

STHU32N65DM6AG Features

* Order code VDS RDS(on) max. ID TAB STHU32N65DM6AG 650 V 97 mΩ 37 A 7 1 HU3PAK Drain(TAB)
* AEC-Q101 qualified
* Fast-recovery body diode
* Lower RDS(on) x area vs previous generation
* Low gate charge, input capacitance and resistance
* 100% avalan

📥 Download Datasheet

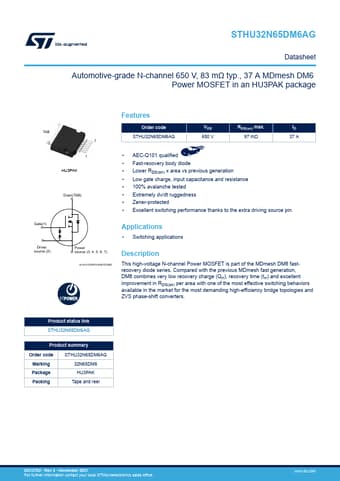

Preview of STHU32N65DM6AG PDF
datasheet Preview Page 2 datasheet Preview Page 3
