STGWA50IH65DF Trench gate field-stop IGBT

STMicroelectronics

STGWA50IH65DF Description

STGWA50IH65DF Trench gate field-stop IGBT, 650 V, 50 A soft switching IH series in a TO-247 long leads package Datasheet - production data .
The newest IGBT 650 V soft-switching IH series has been developed using an advanced proprietary trench gate field-stop structure, whose performance is.

STGWA50IH65DF Features

* Designed for soft-commutation only
* Maximum junction temperature: TJ = 175 °C
* VCE(sat) = 1.5 V (typ. ) @ IC = 50 A
* Minimized tail current
* Tight parameter distribution
* Low thermal resistance
* Low voltage drop freewheeling co-packaged diode Figure 1: Internal sc

STGWA50IH65DF Applications

* Induction heating
* Resonant converters

📥 Download Datasheet

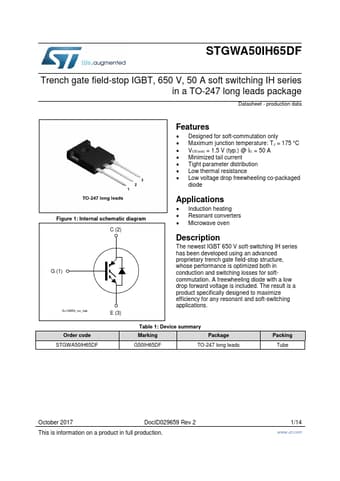

STGWA50IH65DF Datasheet Preview — Preview of STGWA50IH65DF PDF
