STGIPQ8C60T-HZ short-circuit rugged IGBT

STGIPQ8C60T-HZ Description

STGIPQ8C60T-HZ Datasheet SLLIMM™ nano - 2nd series IPM, 3-phase inverter, 8 A, 600 V, short‑circuit rugged IGBTs Product status link STGIPQ8C60T-HZ .

STGIPQ8C60T-HZ Features

* IPM 8 A, 600 V, 3-phase IGBT inverter bridge including 3 control ICs for gate driving and freewheeling diodes
* 3.3 V, 5 V, 15 V TTL/CMOS input comparators with hysteresis and pull-down/ pull-up resistors
* Internal bootstrap diode
* Optimized for low electromagneti

STGIPQ8C60T-HZ Applications

* 3-phase inverters for motor drives
* Dish washers, refrigerator compressors, heating systems, air-condi

📥 Download Datasheet

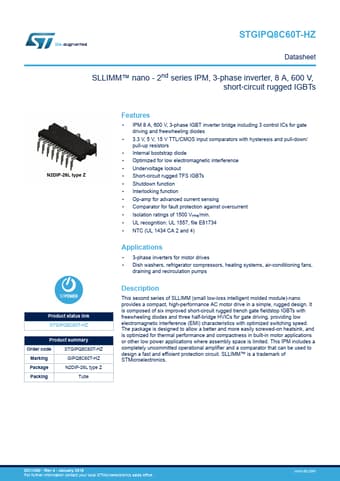

Preview of STGIPQ8C60T-HZ PDF
