STGIPQ3H60T-HZ, STGIPQ3H60T-HL 3-phase IGBT

STGIPQ3H60T-HZ Description

STGIPQ3H60T-HL, STGIPQ3H60T-HZ Datasheet SLLIMM-nano, 2nd series IPM, 3 A, 600 V, 3‑phase inverter bridge IGBT N2DIP-26L type L N2DIP-26L type Z Pro.
This second series of SLLIMM (small low-loss intelligent molded module) nano provides a compact, high-performance AC motor drive in a simple, rugged d.

STGIPQ3H60T-HZ Features

* IPM 3 A, 600 V, 3-phase IGBT inverter bridge including 3 control ICs for gate driving and freewheeling diodes
* 3.3 V, 5 V, 15 V TTL/CMOS input comparators with hysteresis and pull-down/ pull-up resistors
* Internal bootstrap diode
* Optimized for low electromagneti

STGIPQ3H60T-HZ Applications

* 3-phase induction motor (ACIM)
* Dishwasher
* Fans
* Kitchen hoods
* PMSM / BLDC motor control

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STGIPQ3H60T-HZ, STGIPQ3H60T-HL. Please refer to the document for exact specifications by model.

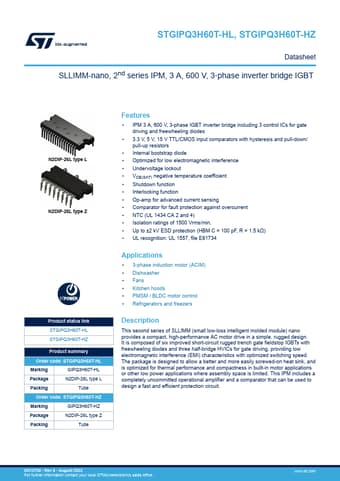

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STGIPQ3H60T-HZ, STGIPQ3H60T-HL
Manufacturer
STMicroelectronics ↗
File Size
1.36 MB
Datasheet
STGIPQ3H60T-HL-STMicroelectronics.pdf
Description
3-phase IGBT
Note
This datasheet PDF includes multiple part numbers: STGIPQ3H60T-HZ, STGIPQ3H60T-HL.
Please refer to the document for exact specifications by model.
