STGIPL14K60-S, STGIPL14K60 short-circuit rugged IGBT

STGIPL14K60-S Description

STGIPL14K60, STGIPL14K60-S SLLIMM™ (small low-loss intelligent molded module) IPM, 3-phase inverter, 15 A, 600 V short-circuit rugged IGBT Datasheet -.
These intelligent power modules provides a compact, high performance AC motor drive in a simple, rugged design.

STGIPL14K60-S Features

* IPM 15 A, 600 V 3-phase IGBT inverter bridge including control ICs for gate driving and freewheeling diodes

STGIPL14K60-S Applications

* 3-phase inverters for motor drives

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STGIPL14K60-S, STGIPL14K60. Please refer to the document for exact specifications by model.

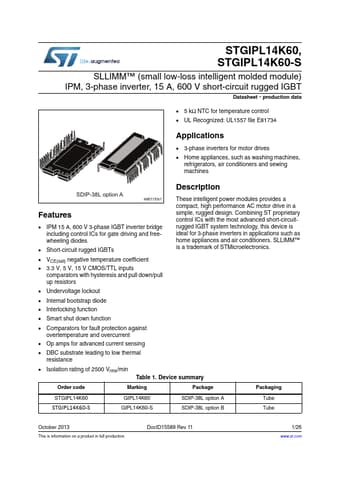

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STGIPL14K60-S, STGIPL14K60
Manufacturer
STMicroelectronics ↗
File Size
834.59 KB
Datasheet
STGIPL14K60_STMicroelectronics.pdf
Description
short-circuit rugged IGBT
Note
This datasheet PDF includes multiple part numbers: STGIPL14K60-S, STGIPL14K60.
Please refer to the document for exact specifications by model.
