STGIPN3H60-H 3-phase IGBT inverter bridge

STGIPN3H60-H Description

STGIPN3H60-H SLLIMM™-nano small low-loss intelligent molded module IPM, 3 A, 600 V, 3-phase IGBT inverter bridge Datasheet - production data Applica.
Features. IPM 3 A, 600 V, 3-phase IGBT inverter bridge including control ICs for gate driving and freewheeling diodes. Optimized for low el.

STGIPN3H60-H Features

* IPM 3 A, 600 V, 3-phase IGBT inverter bridge including control ICs for gate driving and freewheeling diodes
* Optimized for low electromagnetic interference
* VCE(sat) negative temperature coefficient
* 3.3 V, 5 V, 15 V CMOS/TTL inputs comparators with hysteresis and pull down/pull

STGIPN3H60-H Applications

* 3-phase inverters for motor drives

📥 Download Datasheet

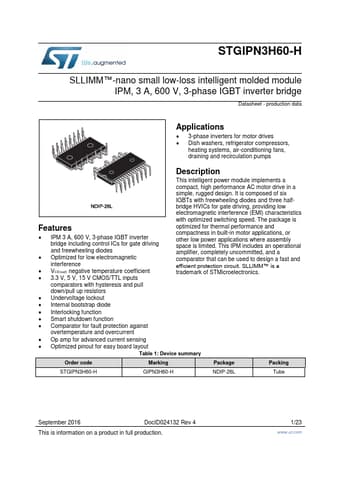

Preview of STGIPN3H60-H PDF
