STGFW20V60DF - Trench gate field-stop IGBT

STMicroelectronics

STGFW20V60DF Description

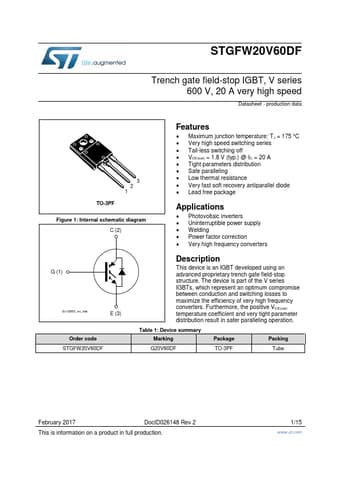

STGFW20V60DF Trench gate field-stop IGBT, V series 600 V, 20 A very high speed Datasheet - production data TO-3PF 3 2 1 Figure 1: Internal schemat.
This device is an IGBT developed using an advanced proprietary trench gate field-stop structure.

STGFW20V60DF Features

* Maximum junction temperature: TJ = 175 °C
* Very high speed switching series
* Tail-less switching off
* VCE(sat) = 1.8 V (typ. ) @ IC = 20 A
* Tight parameters distribution
* Safe paralleling
* Low thermal resistance
* Very fast soft recovery antiparallel diode

STGFW20V60DF Applications

* Photovoltaic inverters
* Uninterruptible power supply
* Welding
* Power factor correction

📥 Download Datasheet

STGFW20V60DF Datasheet Preview — Preview of STGFW20V60DF PDF

Datasheet Details

Part number: STGFW20V60DF
Manufacturer: STMicroelectronics ↗
File Size: 703.74 KB
Datasheet: STGFW20V60DF-STMicroelectronics.pdf
Description: Trench gate field-stop IGBT
