- Part number
- STF9NK80Z
- Manufacturer
- STMicroelectronics ↗
- File Size
- 354.07 KB
- Datasheet
- STF9NK80Z_STMicroelectronics.pdf
- Description
- N-channel Power MOSFET
STF9NK80Z Description

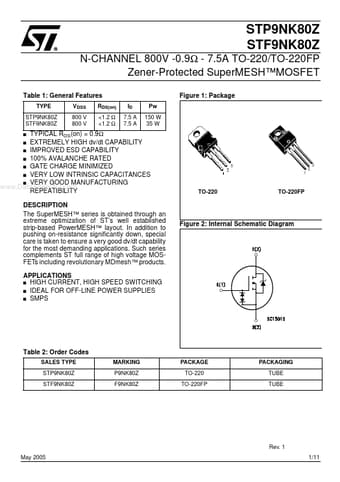

STP9NK80Z STF9NK80Z N-CHANNEL 800V -0.9Ω - 7.5A TO-220/TO-220FP Zener-Protected SuperMESH™MOSFET Table 1: General .
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout.
STF9NK80Z Features
* TYPE STP9NK80Z STF9NK80Z
s s
Figure 1: Package
ID 7.5 A 7.5 A Pw 150 W 35 W
VDSS 800 V 800 V
RDS(on)
STF9NK80Z Applications
* Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s IDEAL FOR OFF-LINE POWER SUPPLIES s SMPS
3 1 2
TO-220
TO-220FP
Figure 2: Internal Schematic Diagram
Table 2: Order Codes
SALES TYPE STP9NK
