STF9NK60ZD - N-channel Power MOSFET

STF9NK60ZD Description

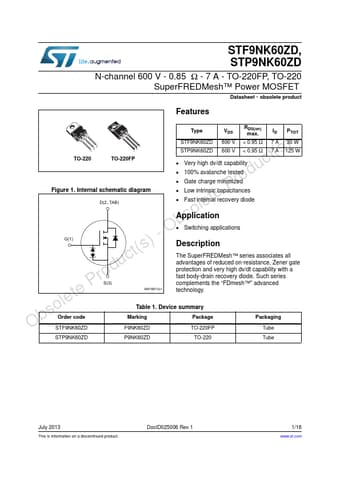

STP9NK60ZD - STF9NK60ZD STB9NK60ZD N-CHANNEL 600V - 0.85Ω - 7A TO-220/TO-220FP/D2PAK SuperFREDMesh™ MOSFET ADVANCED DATA TYPE STP9NK60ZD STF9NK60ZD ST.
The SuperFREDMesh™ series associates all advantages of reduced on-resistance, zener gate protection and very high dv/dt capability with a Fast body-dr.

STF9NK60ZD Features

* OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to souce. In this respect the Zener voltag

STF9NK60ZD Applications

* s HID BALLAST s ZVS PHASE-SHIFT FULL BRIDGE CONVERTERS D2PAK INTERNAL SCHEMATIC DIAGRAM ORDERING INFORMATION SALES TYPE STP9NK60ZD STF9NK60ZD STB9NK60ZDT4 MARKING P9NK60ZD F9NK60ZD B9NK60ZD PACKAGE TO-220 TO-220FP D PAK 2 PACKAGING TUBE TUBE TAPE & REEL January 2004 1/12 STP9NK60ZD - STF9NK60
