STF13N60M2-045Y - N-CHANNEL POWER MOSFET

This page provides the datasheet information for the STF13N60M2-045Y, a member of the STF13N60M2 N-CHANNEL POWER MOSFET family.

Description

This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology.

Thanks to its strip layout and an improved vertical structure, the device exhibits low on-resistance and optimized switching characteristics, rendering it suitable for the most demanding high efficiency converters.

Features

  • 3 2 1 TO-220FP narrow leads Figure 1. Internal schematic diagram Order codes STF13N60M2(045Y) VDS @ TJmax 650 V RDS(on) max 0.38 Ω ID 11 A.
  • Extremely low gate charge.
  • Excellent output capacitance (Coss) profile.
  • 100% avalanche tested.
  • Zener-protected.

📥 Download Datasheet

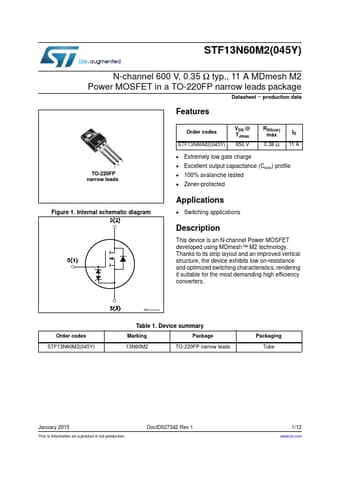

Datasheet preview – STF13N60M2-045Y

📁 Similar Datasheet

  • STF13N95K3 - Power MOSFETs (ST Microelectronics)
  • STF13NK50Z - Power MOSFETs (ST Microelectronics)
  • STF13NM60N - N-channel MOSFET (ST Microelectronics)
  • STF13NM60N - N-Channel MOSFET (INCHANGE)
  • STF100N10F7 - N-Channel MOSFET (INCHANGE)
  • STF100N6F7 - N-Channel MOSFET (INCHANGE)
  • STF1016C - N-Channel Enhancement Mode Field Effect Transistor (SamHop Microelectronics)
  • STF1045 - SCHOTTKY RECTIFIER (SMC Diode)
  • STF1060 - SCHOTTKY RECTIFIER (SANGDEST)
  • STF10NM60N - N-Channel Power MOSFET (ST Microelectronics)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
STF13N60M2(045Y) N-channel 600 V, 0.35 Ω typ., 11 A MDmesh M2 Power MOSFET in a TO-220FP narrow leads package Datasheet − production data Features 3 2 1 TO-220FP narrow leads Figure 1. Internal schematic diagram Order codes STF13N60M2(045Y) VDS @ TJmax 650 V RDS(on) max 0.38 Ω ID 11 A • Extremely low gate charge • Excellent output capacitance (Coss) profile • 100% avalanche tested • Zener-protected Applications • Switching applications Description This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology. Thanks to its strip layout and an improved vertical structure, the device exhibits low on-resistance and optimized switching characteristics, rendering it suitable for the most demanding high efficiency converters.
