MJD47T4 - NPN power transistor

STMicroelectronics

The MJD47T4 by STMicroelectronics is a NPN power transistor. Below is the official datasheet preview.

📥 Download Datasheet

MJD47T4 NPN power transistor by STMicroelectronics - Datasheet Preview — Official preview page of the MJD47T4 NPN power transistor datasheet (STMicroelectronics).

Datasheet Details

Part number	MJD47T4
Manufacturer	STMicroelectronics
File Size	390.15 KB
Description	NPN power transistor
Datasheet	MJD47T4-STMicroelectronics.pdf

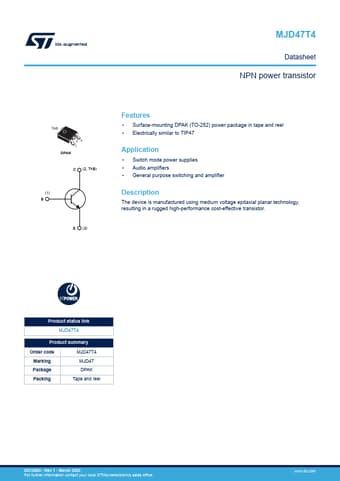

Additional preview pages of the MJD47T4 datasheet.

MJD47T4 Product details

Description

The device is manufactured using medium voltage epitaxial planar technology, resulting in a rugged high-performance cost-effective transistor.

Features

Surface-mounting DPAK (TO-252) power package in tape and reel.
Electrically similar to TIP47.
