MJD45H11T4, MJD44H11T4 - Low voltage complementary power transistors

The MJD45H11T4 by STMicroelectronics is a Low voltage complementary power transistors. Below is the official datasheet preview.

📥 Download Datasheet

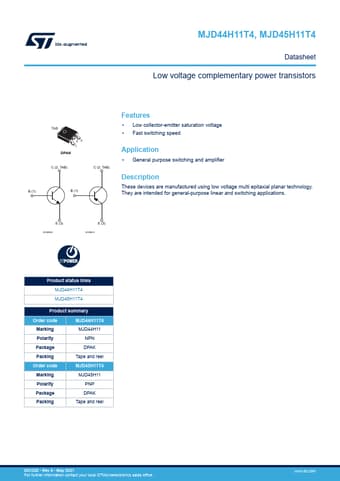

Official preview page of the MJD45H11T4 Low voltage complementary power transistors datasheet (STMicroelectronics).

Datasheet Details

Part number MJD45H11T4, MJD44H11T4
Manufacturer STMicroelectronics
File Size 298.46 KB
Description Low voltage complementary power transistors
Datasheet download datasheet MJD44H11T4-STMicroelectronics.pdf
Note This datasheet PDF includes multiple part numbers: MJD45H11T4, MJD44H11T4.
Please refer to the document for exact specifications by model.
Additional preview pages of the MJD45H11T4 datasheet.

MJD45H11T4 Product details

Description

B (1) B (1) These devices are manufactured using low voltage multi epitaxial planar technology.They are intended for general-purpose linear and switching applications.E (3) SC06960 E (3) SC08810 Product status links MJD44H11T4 MJD45H11T4 Product summary Order code MJD44H11T4 Marking MJD44H11 Polarity NPN Package DPAK Packing Tape and reel Order code MJD45H11T4 Marking MJD45H11 Polarity PNP Package DPAK Packing Tape and reel DS1232 - Rev 5 - May 2021 For further info

Features
