Datasheet4U Logo Datasheet4U.com

MJD42 - General Purpose Amplifier

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MJD42C PNP Transistor SeCoS
MJD42C Silicon PNP Power Transistor Inchange Semiconductor
MJD42C Complementary Power Transistors Kexin
MJD42C Silicon PNP transistor BLUE ROCKET ELECTRONICS
MJD42C Epitaxial Planar PNP Transistor GME

Other Datasheets by Fairchild (onsemi)

Part Number Description
MJD42C PNP Epitaxial Silicon Transistor
MJD42_MJD42C General Purpose Amplifier
MJD41C General Purpose Amplifier
MJD44 General Purpose Power and Switching Such as Output or Driver Stages in Applications D-PAK for Surface Mount Applications
MJD44H11 NPN Epitaxial Silicon Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

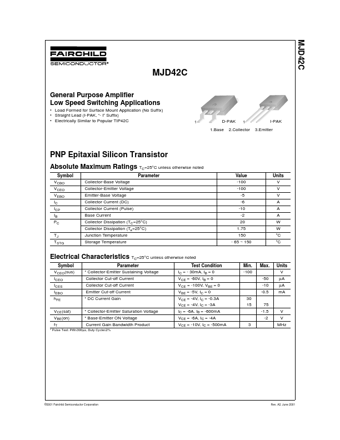

MJD42C MJD42C General Purpose Amplifier Low Speed Switching Applications • Load Formed for Surface Mount Application (No Suffix) • Straight Lead (I-PAK, “- I” Suffix) • Electrically Similar to Popular TIP42C 1 D-PAK 1.Base 1 I-PAK 3.Emitter 2.Collector PNP Epitaxial Silicon Transistor Absolute Maximum Ratings TC=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC ICP IB PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current (DC) Collector Current (Pulse) Base Current Collector Dissipation (TC=25°C) Collector Dissipation (Ta=25°C) Junction Temperature Storage Temperature Value -100 -100 -5 -6 -10 -2 20 1.
Published: |
