STV6688 - Video Switch Matrix

Name: STV6688
SKU: STV6688-508033

ST Microelectronics

The STV6688 by ST Microelectronics is a Video Switch Matrix. Below is the official datasheet preview.

Datasheet Details

Part number	STV6688
Manufacturer	STMicroelectronics
File Size	146.39 KB
Description	Video Switch Matrix
Datasheet	STV6688_STMicroelectronics.pdf

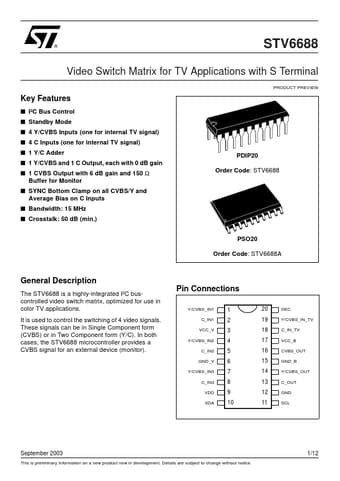

Additional preview pages of the STV6688 datasheet.

The STV6688 is a highly-integrated I²C buscontrolled video switch matrix, optimized for use in color TV applications.

s I²C Bus Control s Standby Mode s 4 Y/CVBS Inputs (one for internal TV signal) s 4 C Inputs (one for internal TV signal) s 1 Y/C Adder s 1 Y/CVBS and 1 C Output, each with 0 dB gain s 1 CVBS Output with 6 dB gain and 150 Ω Buffer for Monitor s SYNC Bottom Clamp on all CVBS/Y and Average Bias on C Inputs s Bandwidth: 15 MHz s Crosstalk: 50 dB (min. ) PSO20 Order Code: STV6688A Order Code: STV6688 PDIP20 General.
