STV6410A AUDIO/VIDEO SWITCH MATRIX

The STV6410A is a highly integrated I2C bus-controlled audio and video switch matrix, optimized for use in digital set-top box applications. It provides all the audio and video routings required in a full three scart set-top box design. It is also fully pin compatible with STV6411A, the two scart ve.

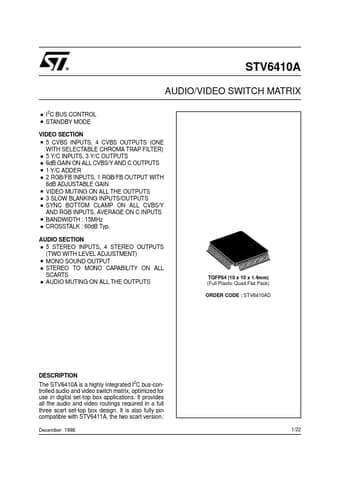

STV6410A AUDIO/VIDEO SWITCH MATRIX . . . . . . . . . . . . . . . . I2C BUS CONTROL STANDBY MODE VIDEO SECTION 5 CVBS INPUTS, 4 CVBS OUTPUTS (ONE WITH SELECTABLE CHROMA TRAP FILTER) 5 Y/C INPUTS, 3 Y/C OUTPUTS 6dB GAIN ON ALL CVBS/Y AND C OUTPUTS 1 Y/C ADDER 2 RGB/FB INPUTS, 1 RGB/FB OUTPUT WITH 6dB ADJUSTABLE GAIN VIDEO MUTING ON ALL THE OUTPUTS 3 SLOW BLANKING INPUTS/OUTPUTS SYNC BOTTOM CLAMP ON ALL CVBS/Y AND RGB INPUTS, AVERAGE ON C INPUTS BANDWIDTH : 15MHz CROSSTALK : 60dB Typ. AUDIO SECT.
