STV6618 - Video Switch Matrix

ST Microelectronics

The STV6618 by ST Microelectronics is a Video Switch Matrix. Below is the official datasheet preview.

📥 Download Datasheet

STV6618 Video Switch Matrix by ST Microelectronics - Datasheet Preview — Official preview page of the **STV6618** Video Switch Matrix datasheet (ST Microelectronics).

Datasheet Details

Part number	STV6618
Manufacturer	STMicroelectronics
File Size	331.31 KB
Description	Video Switch Matrix
Datasheet	STV6618_STMicroelectronics.pdf
Additional preview pages of the STV6618 datasheet.

STV6618 Product details

Description

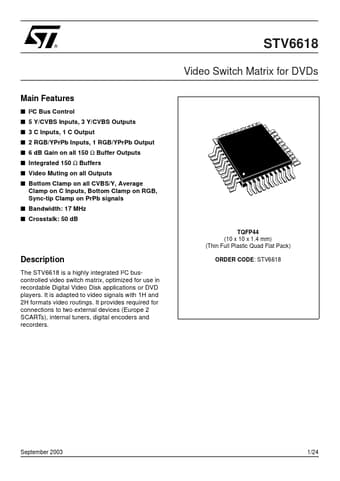

The STV6618 is a highly integrated I²C buscontrolled video switch matrix, optimized for use in recordable Digital Video Disk applications or DVD players.

Features

s I²C Bus Control s 5 Y/CVBS Inputs, 3 Y/CVBS Outputs s 3 C Inputs, 1 C Output s 2 RGB/YPrPb Inputs, 1 RGB/YPrPb Output s 6 dB Gain on all 150 Ω Buffer Outputs s Integrated 150 Ω Buffers s Video Muting on all Outputs s Bottom Clamp on all CVBS/Y, Average Clamp on C Inputs, Bottom Clamp on RGB, Sync-tip Clamp on PrPb signals s Bandwidth: 17 MHz s Crosstalk: 50 dB TQFP44 (10 x 10 x 1.4 mm) (Thin Full Plastic Quad Flat Pack).
