STTA3006P, (STTA3006xx) TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE

® STTA3006P/PI STTA6006TV1/2 TURBOSWITCH ™ ULTRA-FAST HIGH VOLTAGE DIODE MAIN PRODUCT CHARACTERISTICS IF(AV) VRRM trr (typ) VF (max) .
The TURBOSWITCH is a very high performance series of ultra-fast high voltage power diodes from 600V to 1200V.

STTA3006P_STMicroelectronics.pdf

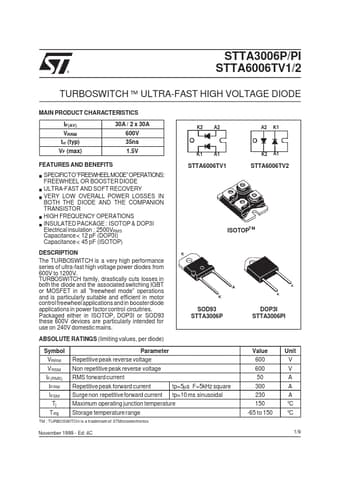

STTA3006P Datasheet Preview — Preview of STTA3006P PDF

Datasheet Details

Part number:

STTA3006P

Manufacturer:

STMicroelectronics ↗

File Size:

82.14 KB

Description:

(STTA3006xx) TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE

Features

* SPECIFICTO”FREEWHEELMODE”OPERATIONS: FREEWHEEL OR BOOSTER DIODE ULTRA-FAST AND SOFT RECOVERY VERY LOW OVERALL POWER LOSSES IN BOTH THE DIODE AND THE COMPANION TRANSISTOR HIGH FREQUENCY OPERATIONS INSULATED PACKAGE : ISOTOP & DOP3I Electrical insulation : 2500VRMS Capacitance < 12 pF (DOP3I) Capacita

Applications

* and in boosterdiode applications in power factor control circuitries. Packaged either in ISOTOP, DOP3I or SOD93 these 600V devices are particularly intended for use on 240V domestic mains. ABSOLUTE RATINGS (limiting values, per diode) Symbol VRRM VRSM IF(RMS) IFRM IFSM Tj T stg Parameter Repetitive
