STS3C2F100, COMPLEMENTARY PAIR STripFETTM POWER MOSFET

STS3C2F100 N-CHANNEL 100V - 0.110 Ω - 3A SO-8 P-CHANNEL 100V - 0.320 Ω - 1.5A SO-8 COMPLEMENTARY PAIR STripFET™ POWER MOSFET TYPE STS3C2F100(N-Channel.
This MOSFET is the second generation of STMicroelectronis unique "Single Feature Size™" strip-based process.

STS3C2F100_STMicroelectronics.pdf

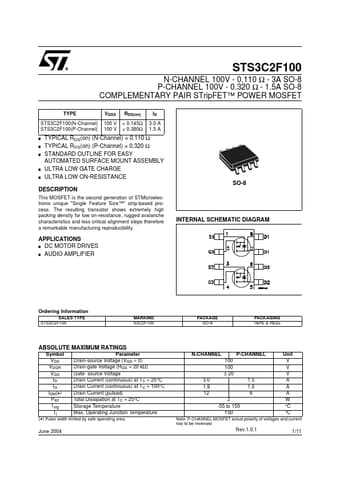

STS3C2F100 Datasheet Preview — Preview of STS3C2F100 PDF

Datasheet Details

Part number:

STS3C2F100

Manufacturer:

STMicroelectronics ↗

File Size:

362.96 KB

Description:

COMPLEMENTARY PAIR STripFETTM POWER MOSFET

Applications

* DC MOTOR DRIVES
* AUDIO AMPLIFIER Ordering Information SALES TYPE STS3C2F100 MARKING S3C2F100 PACKAGE SO-8 PACKAGING TAPE & REEL ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM(
* ) Ptot Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate-
