STS3DNE60L, N - CHANNEL POWER MOSFET

® STS3DNE60L N - CHANNEL 60V - 0.065Ω - 3A SO-8 STripFET™ POWER MOSFET PRELIMINARY DATA TYPE STS3DNE60L s s V DSS 60 V R DS(on) < 0.08 Ω ID 3A s.
This Power MOSFET is the latest development of STMicroelectronics unique " Single Feature Size™ " strip-based process.

STS3DNE60L_STMicroelectronics.pdf

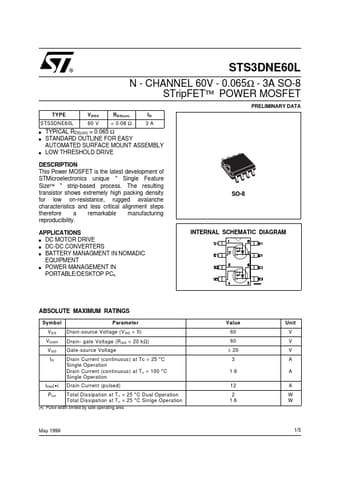

STS3DNE60L Datasheet Preview — Preview of STS3DNE60L PDF

Datasheet Details

Part number:

STS3DNE60L

Manufacturer:

STMicroelectronics ↗

File Size:

71.39 KB

Description:

N - CHANNEL POWER MOSFET

Applications

* DC MOTOR DRIVE s DC-DC CONVERTERS s BATTERY MANAGMENT IN NOMADIC EQUIPMENT s POWER MANAGEMENT IN PORTABLE/DESKTOP PCs s SO-8 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VDS V DGR V GS ID Parameter Drain-source Voltage (V GS = 0) Drain- gate Voltage (R GS = 20 k Ω ) Gate-source Volt
