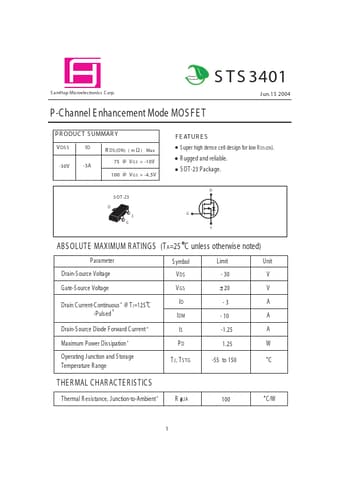

Green Product
S T S 3401
J un.15 2004
S amHop Microelectronics C orp.
P -C hannel E nhancement Mode MOS FE T
P R ODUC T S UMMAR Y
V DS S
-30V
F E AT UR E S
( m Ω ) Max
ID
-3A
R DS (ON)
S uper high dense cell design for low R DS (ON ).
75 @ V G S = -10V 100 @ V G S = -4.5V
R ugged and reliable. S OT-23 P ackage.
D
S OT-23
D S G
G
S
ABS OLUTE MAXIMUM R ATINGS (T A=25 C unless otherwise noted)
P arameter Drain-S ource Voltage Gate-S ource Voltage Drain C urrent-C ontinuous a @ T J =125 C b -P ulsed Drain-S ource Diode Forward C urrent a Maximum P ower Dissipation a Operating Junction and S torage Temperature R ange S ymbol V DS V GS ID IDM IS PD T J , T S TG Limit - 30 20 -3 - 10 -1.25 1.
