STP8NS25, N - CHANNEL POWER MOSFET

N-CHANNEL 250V - 0.38Ω - 8A TO-220/TO-220FP MESH OVERLAY™ MOSFET TYPE STP8NS25 STP8NS25FP s s s STP8NS25 STP8NS25FP VDSS 250 V 250 V RDS(on) < 0.45.
Using the latest high voltage MESH OVERLAY ™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performance.

STP8NS25_STMicroelectronics.pdf

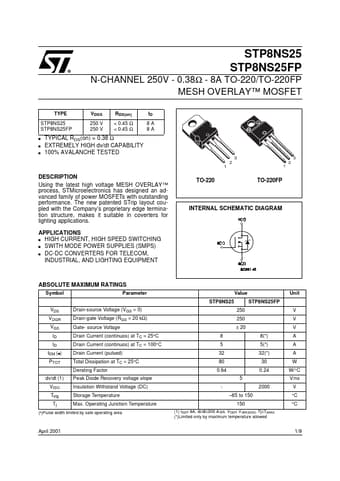

STP8NS25 Datasheet Preview — Preview of STP8NS25 PDF

Datasheet Details

Part number:

STP8NS25

Manufacturer:

STMicroelectronics ↗

File Size:

329.08 KB

Description:

N - CHANNEL POWER MOSFET

Applications

* APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s SWITH MODE POWER SUPPLIES (SMPS) s DC-DC CONVERTERS FOR TELECOM, INDUSTRIAL, AND LIGHTING EQUIPMENT TO-220 TO-220FP INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (q) PTOT dv/dt (1) VISO Tstg Tj Parameter STP
