STP45NE06FP, STP45NE06 N-Channel POWER MOSFET

STP45NE06FP Description

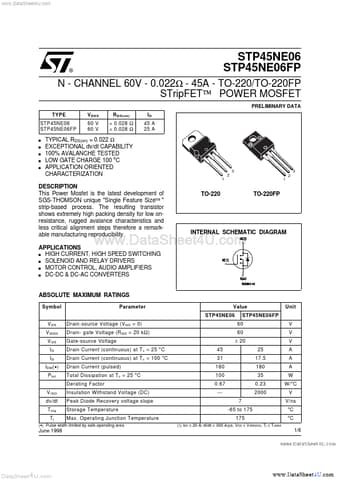

www.DataSheet4U.com ® STP45NE06 STP45NE06FP N - CHANNEL 60V - 0.022Ω - 45A - TO-220/TO-220FP STripFET™ POWER MOSFET PRELIMINARY DATA TYPE STP45NE06.
This Power Mosfet is the latest development of SGS-THOMSON unique "Single Feature Size™ " strip-based process.

STP45NE06FP Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SOLENOID AND RELAY DRIVERS s MOTOR CONTROL, AUDIO AMPLIFIERS s DC-DC & DC-AC CONVERTERS TO-220 TO-220FP www. DataSheet4U. com INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol Parameter Value STP45NE06 V DS V DGR V GS ID ID IDM (
* ) P tot V

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STP45NE06FP, STP45NE06. Please refer to the document for exact specifications by model.
