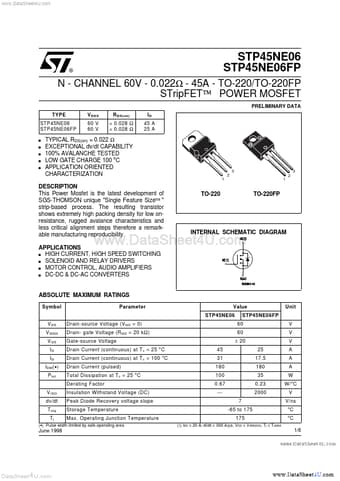

STP45NE06 STP45NE06FP
N - CHANNEL 60V - 0.022Ω - 45A - TO-220/TO-220FP STripFET™ POWER MOSFET
PRELIMINARY DATA TYPE STP45NE06 STP45NE06FP
s s s s s
V DSS 60 V 60 V
R DS(on) < 0.028 Ω < 0.028 Ω
ID 45 A 25 A
TYPICAL RDS(on) = 0.022 Ω EXCEPTIONAL dv/dt CAPABILITY 100% AVALANCHE TESTED LOW GATE CHARGE 100 oC APPLICATION ORIENTED CHARACTERIZATION
1
3 2
1 2
3
DESCRIPTION This Power Mosfet is the latest development of SGS-THOMSON unique "Single Feature Size™ " strip-based process. The resulting transistor shows extremely high packing density for low onresistance, rugged avalance characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility.
