STP210NF02, N-CHANNEL POWER MOSFET

N-CHANNEL 20V - 0.0026 Ω - 120A D²PAK/I²PAK/TO-220 STripFET™ II POWER MOSFET TYPE STB210NF02/-1 STP210NF02 s s s STP210NF02 STB210NF02 STB210NF02-1 A.
This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" stripbased process.

STP210NF02_STMicroelectronics.pdf

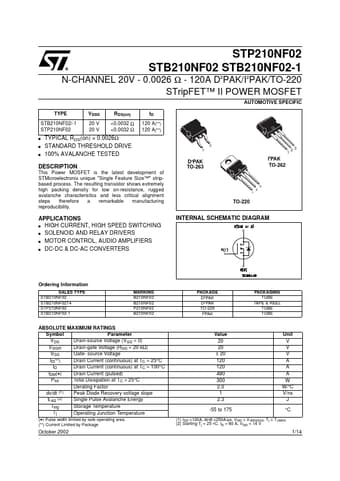

STP210NF02 Datasheet Preview — Preview of STP210NF02 PDF

Datasheet Details

Part number:

STP210NF02

Manufacturer:

STMicroelectronics ↗

File Size:

609.27 KB

Description:

N-CHANNEL POWER MOSFET

Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SOLENOID AND RELAY DRIVERS s MOTOR CONTROL, AUDIO AMPLIFIERS s DC-DC & DC-AC CONVERTERS INTERNAL SCHEMATIC DIAGRAM Ordering Information SALES TYPE STB210NF02 STB210NF02T4 STP210NF02 STB210NF02-1 MARKING B210NF02 B210NF02 P210NF02 B210NF02 PACKAGE D2PAK D2PAK
