STP200NF03 N-CHANNEL POWER MOSFET

STP200NF03 Description

N-CHANNEL 30V - 0.0032 Ω - 120A D²PAK/I²PAK/TO-220 STripFET™ II POWER MOSFET TYPE STB200NF03/-1 STP200NF03 s s s STP200NF03 STB200NF03 STB200NF03-1 A.
This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process.

STP200NF03 Applications

* s HIGH CURRENT, HIGH SWITCHING SPEED s DC-DC & DC-AC CONVERTERS s SOLENOID AND RELAY DRIVERS D²PAK TO-263 I²PAK TO-262 3 1 2 TO-220 INTERNAL SCHEMATIC DIAGRAM Ordering Information SALES TYPE STB200NF03T4 STP200NF03 STB200NF03-1 MARKING B200NF03 P200NF03 B200NF03 PACKAGE D2PAK TO-220 I2PAK PACK

📥 Download Datasheet

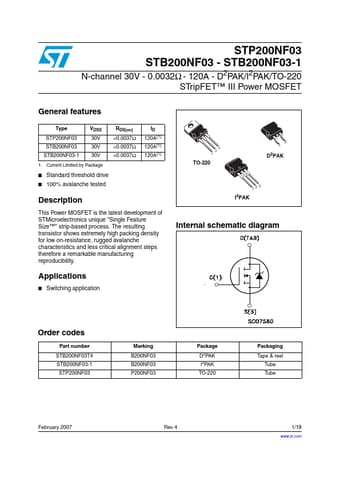

Preview of STP200NF03 PDF
