STM8AF6168, STM8AF612x, Automotive 8-bit MCU

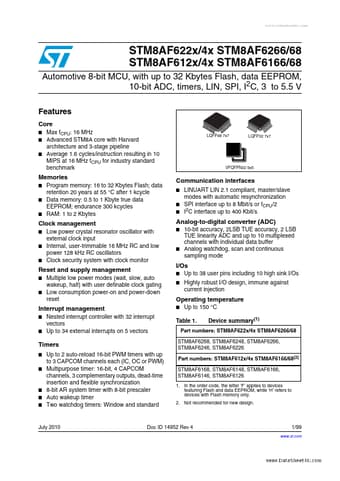

www.DataSheet4U.com STM8AF622x/4x STM8AF6266/68 STM8AF612x/4x STM8AF6166/68 Automotive 8-bit MCU, with up to 32 Kbytes Flash, data EEPROM, 10-bit ADC.

STM8AF612x_STMicroelectronics.pdf

STM8AF6168 Datasheet Preview — This datasheet PDF includes multiple part numbers: STM8AF6168, STM8AF612x. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STM8AF6168, STM8AF612x

Manufacturer:

STMicroelectronics ↗

File Size:

975.10 KB

Description:

Automotive 8-bit MCU

Note:

This datasheet PDF includes multiple part numbers: STM8AF6168, STM8AF612x.
Please refer to the document for exact specifications by model.

Features

* Core
* Max fCPU: 16 MHz
* Advanced STM8A core with Harvard architecture and 3-stage pipeline
* Average 1.6 cycles/instruction resulting in 10 MIPS at 16 MHz fCPU for industry standard benchmark LQFP48 7x7 LQFP32 7x7 VFQFPN32 5x5 Memories
* Program memory: 16 to 32 Kbytes Flash;
