STM8AF6146 - Automotive 8-bit MCU

This page provides the datasheet information for the STM8AF6146, a member of the STM8AF612x Automotive 8-bit MCU family.

Description

.

.

.

.

.

.

12 5 Product

Features

  • Core.
  • Max fCPU: 16 MHz.
  • Advanced STM8A core with Harvard architecture and 3-stage pipeline.
  • Average 1.6 cycles/instruction resulting in 10 MIPS at 16 MHz fCPU for industry standard benchmark Memories.
  • Program memory: 16 to 32 Kbytes Flash; data retention 20 years at 55 °C after 1 kcycle.
  • Data memory: 0.5 to 1 Kbyte true data EEPROM; endurance 300 kcycles.
  • RAM: 1 to 2 Kbytes Clock management.
  • Low power crystal resonator oscillator with external clock input.

📥 Download Datasheet

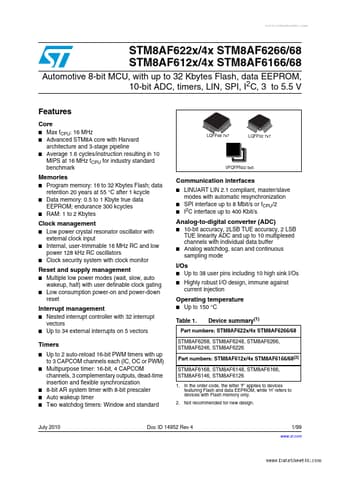

Datasheet preview – STM8AF6146

Datasheet Details

Part number STM8AF6146
Manufacturer STMicroelectronics
File Size 975.10 KB
Description Automotive 8-bit MCU
Datasheet download datasheet STM8AF6146 Datasheet
Additional preview pages of the STM8AF6146 datasheet.

📁 Similar Datasheet

  • STM8AF6166 - Automotive 8-bit MCU (ST Microelectronics)
  • STM8AF6168 - Automotive 8-bit MCU (ST Microelectronics)
  • STM802 - 3V Supervisor (ST Microelectronics)
  • STM8020 - N-Channel Enhancement Mode Field Effect Transistor (SamHop Microelectronics)
  • STM804 - 3V Supervisor (ST Microelectronics)
  • STM805 - 3V Supervisor (ST Microelectronics)
  • STM806 - 3V Supervisor (ST Microelectronics)
  • STM809 - Reset Circuit (ST Microelectronics)
  • STM810 - Reset Circuit (ST Microelectronics)
  • STM811 - Reset Circuit (ST Microelectronics)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com STM8AF622x/4x STM8AF6266/68 STM8AF612x/4x STM8AF6166/68 Automotive 8-bit MCU, with up to 32 Kbytes Flash, data EEPROM, 10-bit ADC, timers, LIN, SPI, I2C, 3 to 5.5 V Features Core ■ Max fCPU: 16 MHz ■ Advanced STM8A core with Harvard architecture and 3-stage pipeline ■ Average 1.6 cycles/instruction resulting in 10 MIPS at 16 MHz fCPU for industry standard benchmark Memories ■ Program memory: 16 to 32 Kbytes Flash; data retention 20 years at 55 °C after 1 kcycle ■ Data memory: 0.
