STGP6NC60HD, STGB6NC60HD Datasheet - ST Microelectronics

STGP6NC60HD, STGB6NC60HD, N-Channel 600V 7A IGBT

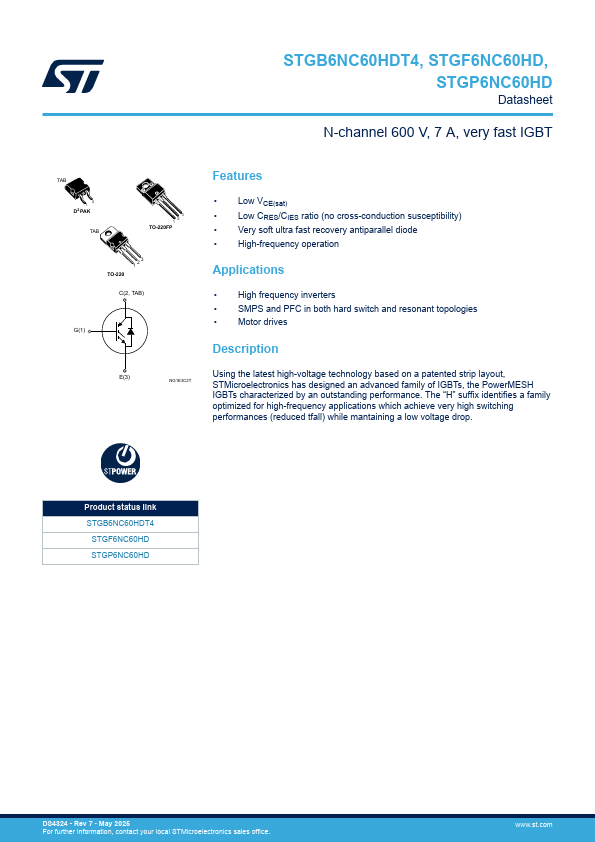

STGB6NC60HDT4, STGF6NC60HD, STGP6NC60HD Datasheet N-channel 600 V, 7 A, very fast IGBT TAB 3 1 D2 PAK TAB 3 2 1 TO-220FP TO-220 1 23 C(2, TAB) G.
Using the latest high-voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBTs, the PowerMESH.

Datasheet Preview Page 1

STGB6NC60HD_STMicroelectronics.pdf

STGP6NC60HD Datasheet Preview — This datasheet PDF includes multiple part numbers: STGP6NC60HD, STGB6NC60HD. Please refer to the document for exact specifications by model.

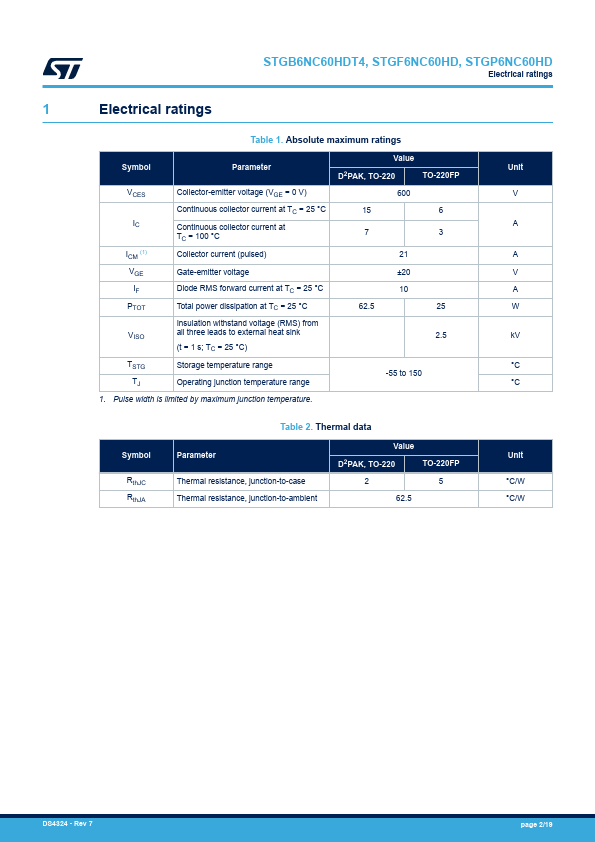

STGP6NC60HD Datasheet Preview Page 2

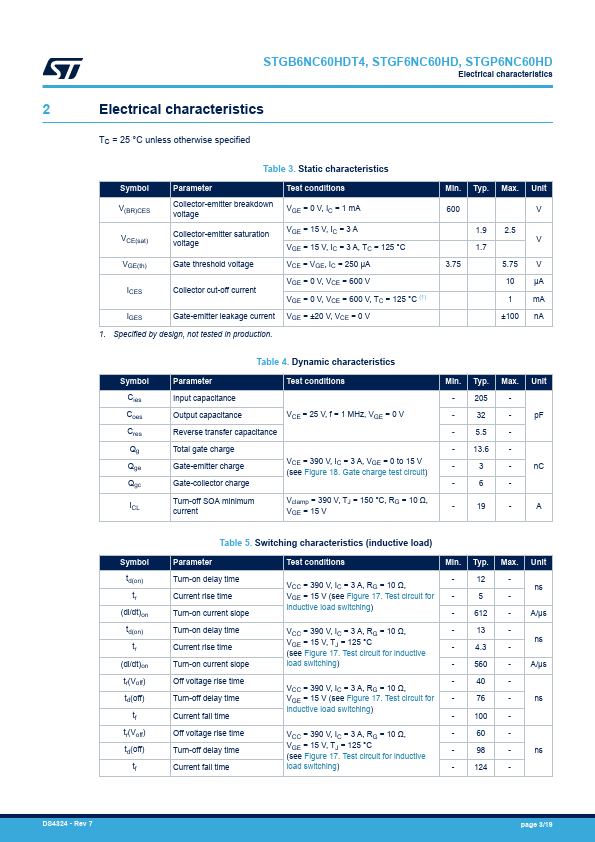

STGP6NC60HD Datasheet Preview Page 3

Datasheet Details

Part number:

STGP6NC60HD, STGB6NC60HD

Manufacturer:

STMicroelectronics ↗

File Size:

3.31 MB

Description:

N-Channel 600V 7A IGBT

Note:

This datasheet PDF includes multiple part numbers: STGP6NC60HD, STGB6NC60HD.
Please refer to the document for exact specifications by model.

Features

* Low VCE(sat)
* Low CRES/CIES ratio (no cross-conduction susceptibility)
* Very soft ultra fast recovery antiparallel diode

Applications

* High frequency inverters
* SMPS and PFC in both hard switch and resonant topologies
