STGP10NC60KD, STGB10NC60KDT4 600V short-circuit rugged IGBT

STMicroelectronics

STGP10NC60KD Description

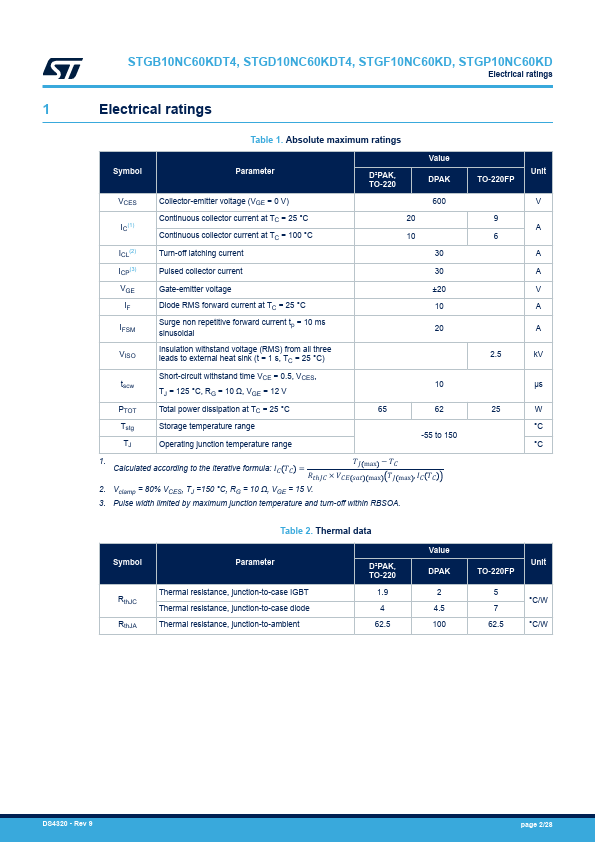

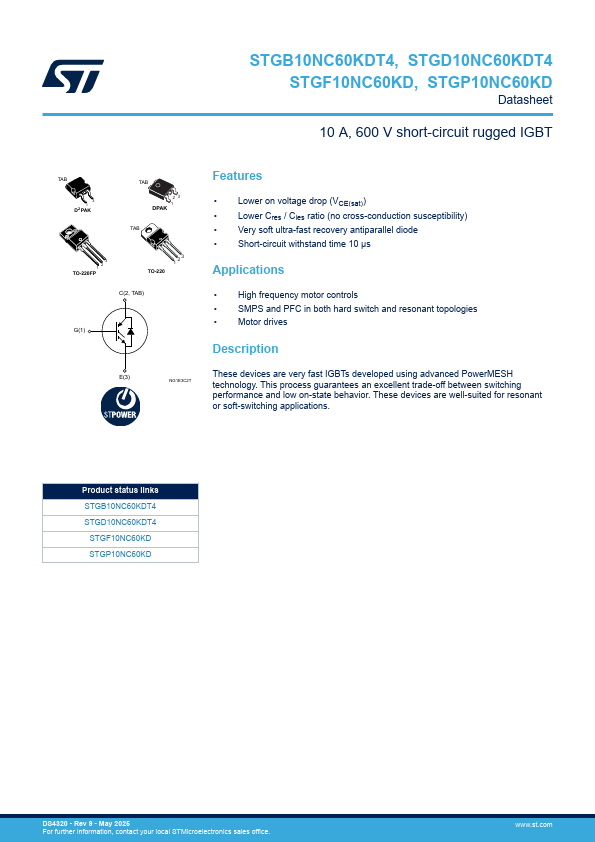

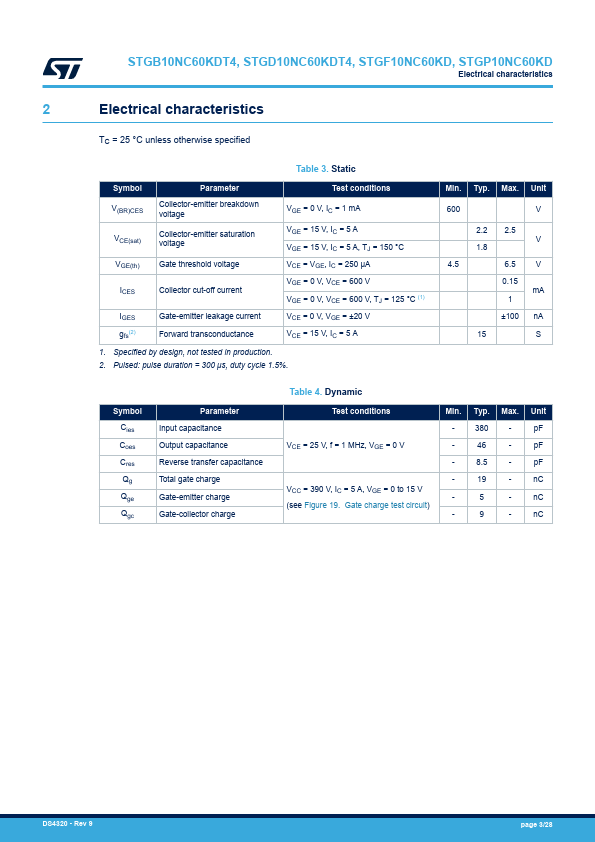

STGB10NC60KDT4, STGD10NC60KDT4 STGF10NC60KD, STGP10NC60KD Datasheet 10 A, 600 V short-circuit rugged IGBT TAB 3 1 D2 PAK TAB 23 1 DPAK TAB 3 2 1 TO.
These devices are very fast IGBTs developed using advanced PowerMESH technology.

STGP10NC60KD Features

* Lower on voltage drop (VCE(sat))
* Lower Cres / Cies ratio (no cross-conduction susceptibility)
* Very soft ultra-fast recovery antiparallel diode

STGP10NC60KD Applications

* High frequency motor controls
* SMPS and PFC in both hard switch and resonant topologies

📥 Download Datasheet

STGP10NC60KD Datasheet Preview — This datasheet PDF includes multiple part numbers: STGP10NC60KD, STGB10NC60KDT4. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: STGP10NC60KD, STGB10NC60KDT4
Manufacturer: STMicroelectronics ↗
File Size: 3.80 MB
Datasheet: STGB10NC60KDT4-STMicroelectronics.pdf
Description: 600V short-circuit rugged IGBT
Note: This datasheet PDF includes multiple part numbers: STGP10NC60KD, STGB10NC60KDT4.
Please refer to the document for exact specifications by model.
