STGF6NC60HD, STGB6NC60HD - N-Channel 600V 7A IGBT

ST Microelectronics

The STGF6NC60HD by ST Microelectronics is a N-Channel 600V 7A IGBT. Below is the official datasheet preview.

📥 Download Datasheet

STGF6NC60HD N-Channel 600V 7A IGBT by ST Microelectronics - Datasheet Preview — Official preview page of the **STGF6NC60HD** N-Channel 600V 7A IGBT datasheet (ST Microelectronics).

Datasheet Details

Part number	STGF6NC60HD, STGB6NC60HD
Manufacturer	STMicroelectronics
File Size	3.31 MB
Description	N-Channel 600V 7A IGBT
Datasheet	STGB6NC60HD_STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STGF6NC60HD, STGB6NC60HD. Please refer to the document for exact specifications by model.

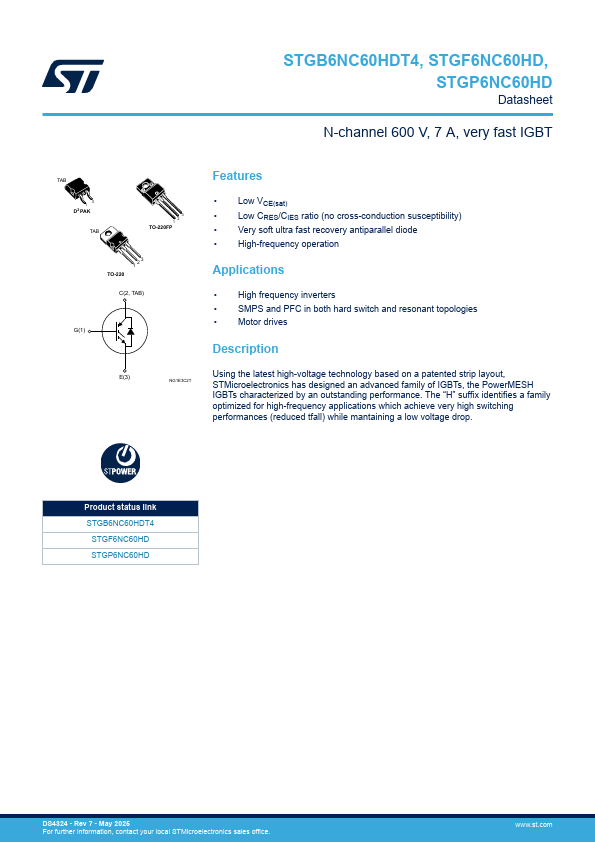

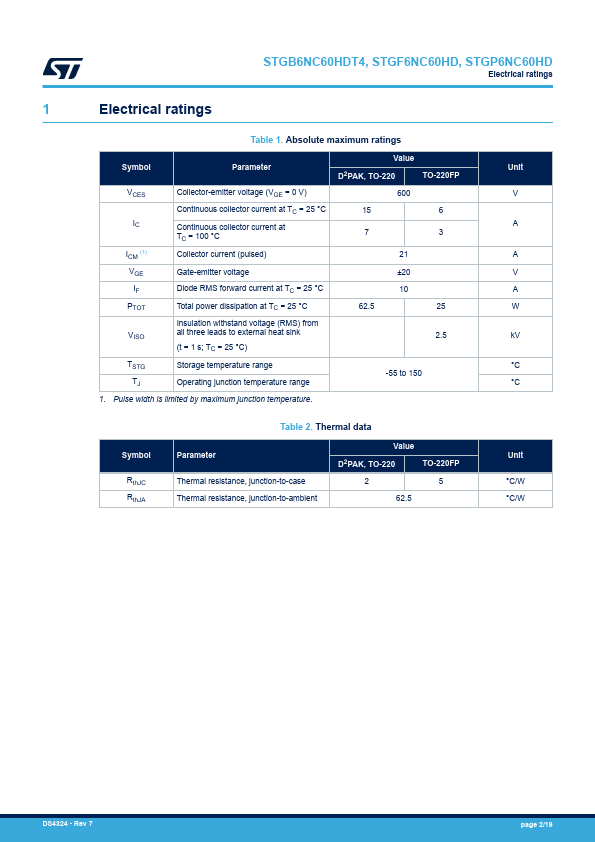

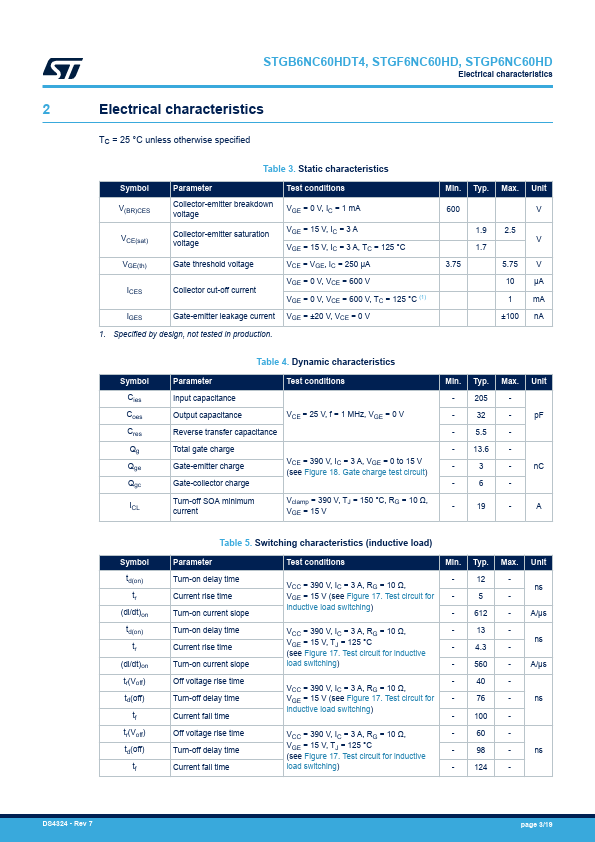

Additional preview pages of the STGF6NC60HD datasheet.

STGF6NC60HD Product details

Description

Using the latest high-voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBTs, the PowerMESH IGBTs characterized by an outstanding performance.

Features

Low VCE(sat).
Low CRES/CIES ratio (no cross-conduction susceptibility).
Very soft ultra fast recovery antiparallel diode.
High-frequency operation.
