STGB6NC60HD - N-CHANNEL IGBT

STGB6NC60HD Description

www.DataSheet4U.com STGB6NC60HD STGF6NC60HD - STGP6NC60HD N-channel 600V - 7A - D2PAK / TO-220 / TO-220FP Very fast PowerMESH™ IGBT General .
Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has designed an advaced family of IGBTs, the PowerMESH™.

STGB6NC60HD Features

* Type STGB6NC60HD STGP6NC60HD STGF6NC60HD
* VCES 600V 600V 600V VCE(sat)max @25°C

STGB6NC60HD Applications

* High frequency inverters SMPS and PFC in both hard switch and resonant topologies Motor drivers Order codes Part number STGB6NC60HDT4 STGP6NC60HD STGF6NC60HD Marking GB6NC60HD GP6NC60HD GF6NC60HD Package D²PAK TO-220 TO-220FP Packaging Tape & reel Tube Tube July 2006 Rev 3 1/1

📥 Download Datasheet

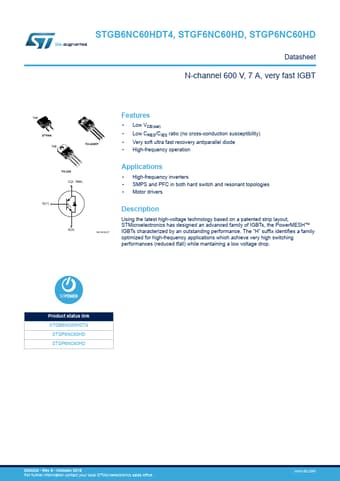

Preview of STGB6NC60HD PDF
