STB60NE06L-16 - N-CHANNEL Power MOSFET

Description

This Power Mosfet is the latest development of STMicroelectronis unique ”Single Feature Size™” strip-based process.

📥 Download Datasheet

📁 Similar Datasheet

  • STB60N55F3 - N-channel Power MOSFET (STMicroelectronics)
  • STB60NF06-1 - N-CHANNEL Power MOSFET (STMicroelectronics)
  • STB60NF06LT4 - N-CHANNEL POWER MOSFET (STMicroelectronics)
  • STB60NF10 - N-CHANNEL Power MOSFET (STMicroelectronics)
  • STB60NF10-1 - N-CHANNEL Power MOSFET (STMicroelectronics)
  • STB6010 - SURFACE MOUNT BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR (EIC)
  • STB60100C - SCHOTTKY RECTIFIER (SMC Diode)
  • STB6011 - SURFACE MOUNT BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR (EIC)
  • STB6012 - SURFACE MOUNT BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR (EIC)
  • STB6013 - SURFACE MOUNT BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR (EIC)
Other Datasheets by ST Microelectronics

Full PDF Text Transcription

Click to expand full text

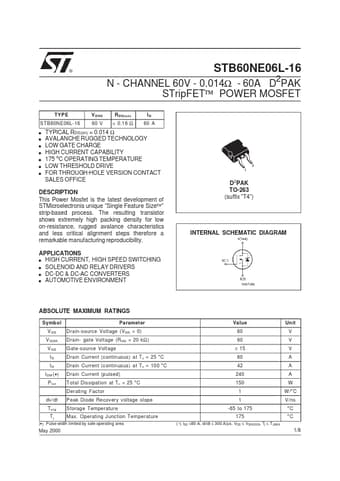

® STB60NE06L-16 N - CHANNEL 60V - 0.014Ω - 60A D2PAK STripFET™ POWER MOSFET TYPE STB60NE06L-16 s s s s s s s V DSS 60 V R DS(on) < 0.16 Ω ID 60 A TYPICAL RDS(on) = 0.014 Ω AVALANCHE RUGGED TECHNOLOGY LOW GATE CHARGE HIGH CURRENT CAPABILITY 175 oC OPERATING TEMPERATURE LOW THRESHOLD DRIVE FOR THROUGH-HOLE VERSION CONTACT SALES OFFICE 3 1 DESCRIPTION This Power Mosfet is the latest development of STMicroelectronis unique ”Single Feature Size™” strip-based process. The resulting transistor shows extremely high packing density for low on-resistance, rugged avalance characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility.
