MD2103DFX - High Voltage NPN Power Transistor

ST Microelectronics

The MD2103DFX by ST Microelectronics is a High Voltage NPN Power Transistor. Below is the official datasheet preview.

📥 Download Datasheet

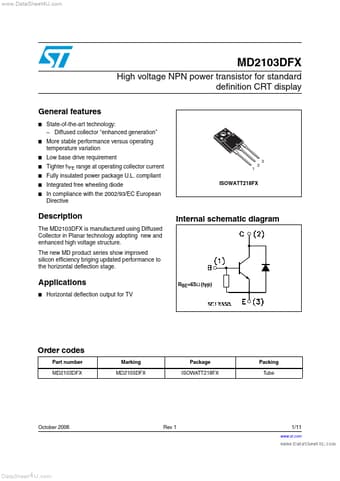

MD2103DFX High Voltage NPN Power Transistor by ST Microelectronics - Datasheet Preview — Official preview page of the **MD2103DFX** High Voltage NPN Power Transistor datasheet (ST Microelectronics).

Datasheet Details

Part number	MD2103DFX
Manufacturer	STMicroelectronics
File Size	329.32 KB
Description	High Voltage NPN Power Transistor
Datasheet	MD2103DFX_STMicroelectronics.pdf
Additional preview pages of the MD2103DFX datasheet.

MD2103DFX Product details

Description

The MD2103DFX is manufactured using Diffused Collector in Planar technology adopting new and enhanced high voltage structure. RBE=65Ω (typ) Horizontal deflection output for TV Order codes Part number MD2103DFX Marking MD2103DFX Package ISOWATT218FX Packing Tube October 2006 Rev 1 1/11 www.st.com 11 DataSheet 4 U .com ww

Features

State-of-the-art technology:.
Diffused collector “enhanced generation” More stable performance versus operating temperature variation Low base drive requirement Tighter hFE range at operating collector current Fully insulated power package U. L. compliant Integrated free wheeling diode In compliance with the 2002/93/EC European Directive ISOWATT218FX 1 2 3.
