MD2103DFH - High voltage NPN power transistor

ST Microelectronics

The MD2103DFH by ST Microelectronics is a High voltage NPN power transistor. Below is the official datasheet preview.

📥 Download Datasheet

MD2103DFH High voltage NPN power transistor by ST Microelectronics - Datasheet Preview — Official preview page of the **MD2103DFH** High voltage NPN power transistor datasheet (ST Microelectronics).

Datasheet Details

Part number	MD2103DFH
Manufacturer	STMicroelectronics
File Size	239.30 KB
Description	High voltage NPN power transistor
Datasheet	MD2103DFH_STMicroelectronics.pdf

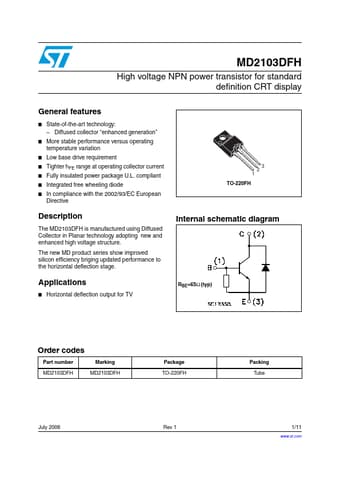

Additional preview pages of the MD2103DFH datasheet.

MD2103DFH Product details

Description

The MD2103DFH is manufactured using Diffused Collector in Planar technology adopting new and enhanced high voltage structure. RBE=65Ω (typ) Horizontal deflection output for TV Order codes Part number MD2103DFH Marking MD2103DFH Package TO-220FH Packing Tube July 2006 Rev 1 1/11 www.st.com 11 MD2103DFH Contents 1 2 Elect

Features

State-of-the-art technology:.
Diffused collector “enhanced generation” More stable performance versus operating temperature variation Low base drive requirement Tighter hFE range at operating collector current Fully insulated power package U. L. compliant Integrated free wheeling diode In compliance with the 2002/93/EC European Directive TO-220FH 1 2 3.
