MD2001FX - High voltage NPN Power transistor

ST Microelectronics

The MD2001FX by ST Microelectronics is a High voltage NPN Power transistor. Below is the official datasheet preview.

📥 Download Datasheet

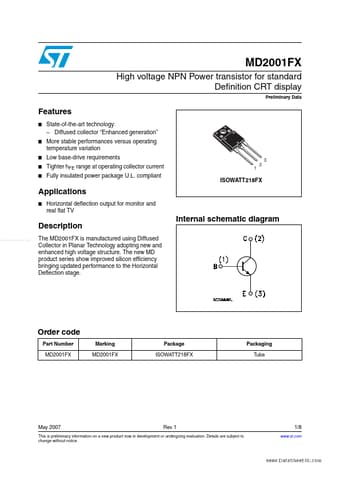

MD2001FX High voltage NPN Power transistor by ST Microelectronics - Datasheet Preview — Official preview page of the **MD2001FX** High voltage NPN Power transistor datasheet (ST Microelectronics).

Datasheet Details

Part number	MD2001FX
Manufacturer	STMicroelectronics
File Size	130.91 KB
Description	High voltage NPN Power transistor
Datasheet	MD2001FX_STMicroelectronics.pdf
Additional preview pages of the MD2001FX datasheet.

MD2001FX Product details

Description

www.DataSheet4U.com The MD2001FX is manufactured using Diffused Collector in Planar Technology adopting new and enhanced high voltage structure.The new MD product series show improved silicon efficiency bringing updated performance to the Horizontal Deflection stage.3 2 1 ISOWATT218FX Internal schematic diagram Order code Part Number MD2001FX Marking MD2001FX Package ISOWATT218FX Packaging Tube May 2007 Rev 1 This is preliminary information on a new product now in development or unde

Features

State-of-the-art technology:.
Diffused collector “Enhanced generation”.
More stable performances versus operating temperature variation.
Low base-drive requirements.
Tighter hFE range at operating collector current.
Fully insulated power package U. L. compliant.
