GB10NB37LZ internally clamped IGBT

GB10NB37LZ Description

® STGB10NB37LZ N-CHANNEL CLAMPED 10A D2PAK INTERNALLY CLAMPED PowerMESH™ IGBT TYPE STGB10NB37LZ s s s s s s V CES CLAMPED V CE(s at) < 1.8 V IC 1.
Using the latest high voltage technology based on patented strip layout, SGS-Thomson has designed an advanced family of IGBTs with outstanding perform.

GB10NB37LZ Applications

* AUTOMOTIVE IGNITION D2PAK TO-263 INTERNAL SCHEMATIC DIAGRAM s ABSOLUTE MAXIMUM RATINGS Symb ol V CES V ECR V GE IC IC I CM (
* ) P tot E SD T s tg Tj June 1999 Parameter Collector-Emitter Voltage (VGS = 0) Reverse Battery Protection G ate-Emitter Voltage Collector Current (continuous) at

📥 Download Datasheet

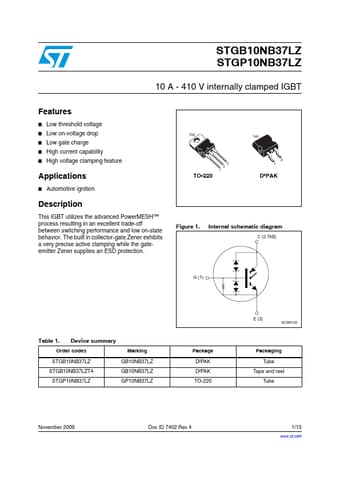

Preview of GB10NB37LZ PDF
