S72WS256N, S72WS-N - Based MCP/PoP Products

SPANSION

📥 Download Datasheet

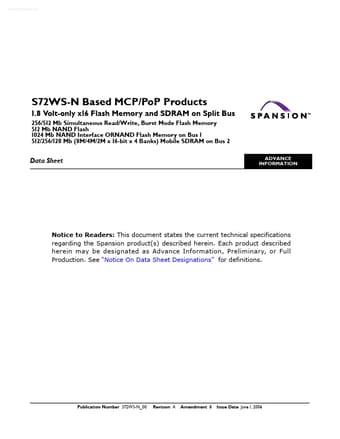

S72WS256N Datasheet Preview — This datasheet PDF includes multiple part numbers: S72WS256N, S72WS-N. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	S72WS256N, S72WS-N
Manufacturer	SPANSION
File Size	0.98 MB
Description	Based MCP/PoP Products
Datasheet	S72WS-N_SPANSION.pdf
Note	This datasheet PDF includes multiple part numbers: S72WS256N, S72WS-N. Please refer to the document for exact specifications by model.

S72WS256N Product details

Description

of Spansion data sheet designations are presented here to highlight their presence and definitions.

Features

Power supply voltage of 1.7 to 1.95V High Performance.
Flash access time: 80 ns for NOR Flash, 25 ns for ORNAND Flash.
Flash burst frequencies: 54 MHz, 66MHz, 80MHz.
Mobile SDRAM burst frequency: 104 MHz, 133 MHz (DDR).
Package:.
9.0 x 12.0 mm MCP BGA.
11.0 x 13.0 mm MCP BGA.
15.0 x 15.0 x 1.2 mm MCP Package-on-Package (PoP).
Operating Temperature.
25°C to +85°C (wireless) General.
