S72WS512P, S72WS-P - based MCP/PoP Products

SPANSION

📥 Download Datasheet

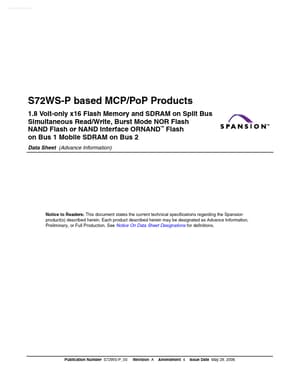

S72WS512P Datasheet Preview — This datasheet PDF includes multiple part numbers: S72WS512P, S72WS-P. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	S72WS512P, S72WS-P
Manufacturer	SPANSION
File Size	691.88 KB
Description	based MCP/PoP Products
Datasheet	S72WS-P_SPANSION.pdf
Note	This datasheet PDF includes multiple part numbers: S72WS512P, S72WS-P. Please refer to the document for exact specifications by model.

S72WS512P Product details

Description

of Spansion data sheet designations are presented here to highlight their presence and definitions.

Features

Power supply voltage of 1.7 to 1.95V.
Flash access time: 80 ns for NOR Flash, 25 ns for ORNAND Flash.
Flash burst frequencies: 66 MHz, 80 MHz, 108 MHz.
Mobile SDRAM burst frequency: 104 MHz (SDR), 133 MHz (DDR).
Package:.
9.0 x 12.0 mm MCP.
11.0 x 13.0 mm MCP.
15.0 x 15.0 mm Package-on-Package (PoP).
Operating Temperature.
25°C to +85°C (wireless) The S72WS series is a product line of stacked pac.
