S72WS-N - Based MCP/PoP Products

SPANSION

📥 Download Datasheet

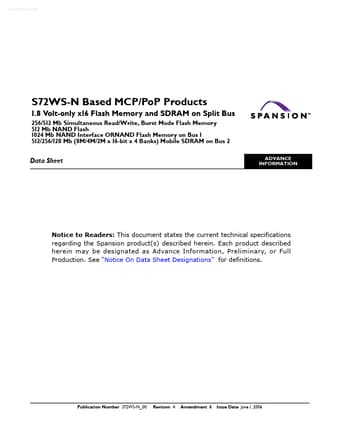

S72WS-N Datasheet Preview — Preview of S72WS-N PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	S72WS-N
Manufacturer	SPANSION
File Size	0.98 MB
Description	Based MCP/PoP Products
Datasheet	S72WS-N_SPANSION.pdf

S72WS-N Product details

Description

of Spansion data sheet designations are presented here to highlight their presence and definitions.

Features

Power supply voltage of 1.7 to 1.95V High Performance.
Flash access time: 80 ns for NOR Flash, 25 ns for ORNAND Flash.
Flash burst frequencies: 54 MHz, 66MHz, 80MHz.
Mobile SDRAM burst frequency: 104 MHz, 133 MHz (DDR).
Package:.
9.0 x 12.0 mm MCP BGA.
11.0 x 13.0 mm MCP BGA.
15.0 x 15.0 x 1.2 mm MCP Package-on-Package (PoP).
Operating Temperature.
25°C to +85°C (wireless) General.
