LAN8710A Small Footprint MII/RMII 10/100 Ethernet Transceiver

LAN8710A Description

LAN8710A/LAN8710Ai Small Footprint MII/RMII 10/100 Ethernet Transceiver with HP Auto-MDIX and flexPWR® Technology PRODUCT .
at any time without notice.

LAN8710A Features

* Datasheet Highlights
* Single-Chip Ethernet Physical Layer Transceiver (PHY)
* Comprehensive flexPWR® Technology
* Flexible Power Management Architecture
* LVCMOS Variable I/O voltage range: +1.6V to +3.6V
* Integrated 1.2V regulator with disable feature

LAN8710A Applications

* Set-Top Boxes
* Networked Printers and Servers
* Test Instrumentation
* LAN on Motherboard
* Embedded Telecom Applications
* Video Record/Playback Systems
* Cable Modems/Routers
* DSL Modems/Routers
* Digital Video Recorders

📥 Download Datasheet

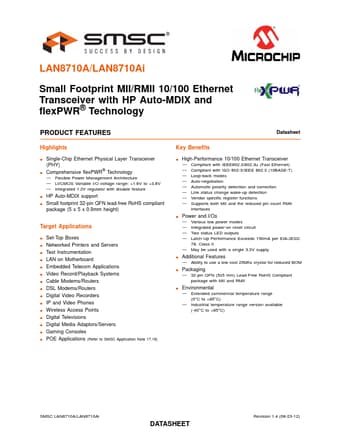

Preview of LAN8710A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LAN8710A
Manufacturer
SMSC
File Size
661.34 KB
Datasheet
LAN8710A-SMSC.pdf
Description
Small Footprint MII/RMII 10/100 Ethernet Transceiver
