LAN8700i - MII/RMII 10/100 Ethernet Transceiver

Download the LAN8700i datasheet PDF (LAN8700 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for mii/rmii 10/100 ethernet transceiver.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LAN8700-Microchip.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number LAN8700i
Manufacturer Microchip
File Size 768.75 KB
Description MII/RMII 10/100 Ethernet Transceiver
Datasheet download datasheet LAN8700i Datasheet

📁 Similar Datasheet

  • LAN8700 - ESD Protected MII/RMII Fast-Ethernet PHY (SMSC)
  • LAN8710A - Small Footprint MII/RMII 10/100 Ethernet Transceiver (SMSC)
  • LAN8710Ai - Small Footprint MII/RMII 10/100 Ethernet Transceiver (SMSC)
  • LAN8720 - Small Footprint RMII 10/100 Ethernet Transceiver (SMSC)
  • LAN8720I - Small Footprint RMII 10/100 Ethernet Transceiver (SMSC)
  • LAN8187 - ESD Protected MII/RMII Fast-Ethernet PHY (SMSC Corporation)
  • LAN8187I - ESD Protected MII/RMII Fast-Ethernet PHY (SMSC Corporation)
  • LAN83C180 - 10/100 Fast Ethernet PHY Transceiver (SMSC Corporation)
  • LAN83C185 - High Performance Single Chip Low Power 10/100 Ethernet Physical Layer Transceiver (SMSC Corporation)
  • LAN0019-01 - SMARTDAA V.90 LOW PROFILE TRANSFORMER (ETC)
Other Datasheets by Microchip
  • LAN8700 - MII/RMII 10/100 Ethernet Transceiver
  • LAN8710A - Small Footprint MII/RMII 10/100 Ethernet Transceiver
  • LAN8710Ai - Small Footprint MII/RMII 10/100 Ethernet Transceiver
  • LAN8720A - Small Footprint RMII 10/100 Ethernet Transceiver
  • LAN8720AI - Small Footprint RMII 10/100 Ethernet Transceiver
  • LAN8740A - Small Footprint MII/RMII 10/100 Energy Efficient Ethernet Transceiver
  • LAN8740AI - Small Footprint MII/RMII 10/100 Energy Efficient Ethernet Transceiver
  • LAN8741A - Small Footprint MII/RMII 10/100 Energy Efficient Ethernet Transceiver

Full PDF Text Transcription

Click to expand full text

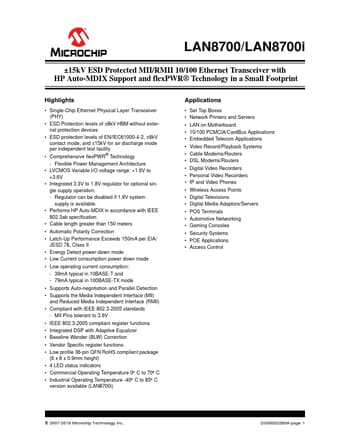

LAN8700/LAN8700i ±15kV ESD Protected MII/RMII 10/100 Ethernet Transceiver with HP Auto-MDIX Support and flexPWR® Technology in a Small Footprint Highlights • Single-Chip Ethernet Physical Layer Transceiver (PHY) • ESD Protection levels of ±8kV HBM without external protection devices • ESD protection levels of EN/IEC61000-4-2, ±8kV contact mode, and ±15kV for air discharge mode per independent test facility • Comprehensive flexPWR® Technology - Flexible Power Management Architecture • LVCMOS Variable I/O voltage range: +1.6V to +3.6V • Integrated 3.3V to 1.8V regulator for optional single supply operation. - Regulator can be disabled if 1.8V system supply is available. • Performs HP Auto-MDIX in accordance with IEEE 802.
