LAN8720AI, LAN8720A Small Footprint RMII 10/100 Ethernet Transceiver

LAN8720AI Description

LAN8720A/LAN8720AI Small Footprint RMII 10/100 Ethernet Transceiver with HP Auto-MDIX Support Highlights * Single-Chip Ethernet Physical Lay.
and Configuration 6 3.

LAN8720AI Features

* - Ability to use a low cost 25Mhz crystal for reduced BOM
* Packaging - 24-pin QFN/SQFN (4x4 mm) Lead-Free RoHS Compliant package with RMII
* Environmental - Extended commercial temperature range (0°C to +85°C) - Industrial temperature range version available (-40°C to +85°C)  2024

LAN8720AI Applications

* Set-Top Boxes
* Networked Printers and Servers
* Test Instrumentation
* LAN on Motherboard
* Embedded Telecom Applications
* Video Record/Playback Systems
* Cable Modems/Routers
* DSL Modems/Routers
* Digital Video Recorders

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LAN8720AI, LAN8720A. Please refer to the document for exact specifications by model.

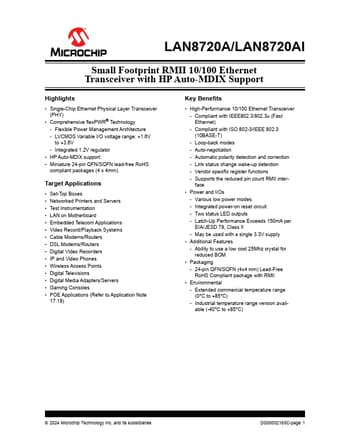

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LAN8720AI, LAN8720A
Manufacturer
Microchip ↗
File Size
1.60 MB
Datasheet
LAN8720A-Microchip.pdf
Description
Small Footprint RMII 10/100 Ethernet Transceiver
Note
This datasheet PDF includes multiple part numbers: LAN8720AI, LAN8720A.
Please refer to the document for exact specifications by model.
