Description

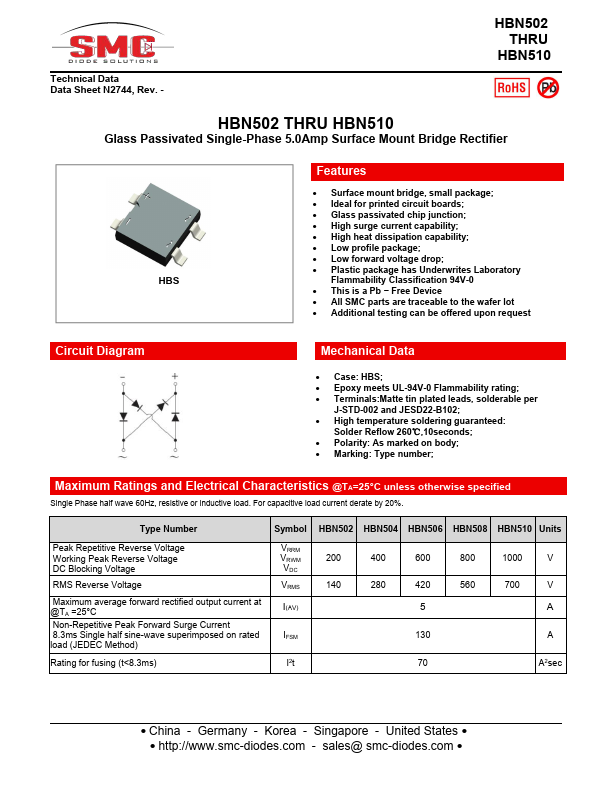

Technical Data Data Sheet N2744, Rev.- HBN502 THRU HBN510 HBN502 THRU HBN510 Glass Passivated Single-Phase 5.0Amp Surface Mount Bridge Rectifier H.
Features
* Surface mount bridge, small package;
* Ideal for printed circuit boards;
* Glass passivated chip junction;
* High surge current capability;
* High heat dissipation capability;
* Low profile package;
* Low forward voltage drop;
* Plastic package has Underwrites Labor
Applications
* of information, products or circuits described in the datasheets. 4- In no event shall SMC Diode Solutions be liable for any failure in a semiconductor device or any secondary damage resulting from use at a value exceeding the absolute maximum rating. 5- No license is granted by the datasheet(s) und
