HBN506, HBN502 - Glass Passivated Single-Phase 5.0Amp Surface Mount Bridge Rectifier

HBN506 Description

Technical Data Data Sheet N2744, Rev.- HBN502 THRU HBN510 HBN502 THRU HBN510 Glass Passivated Single-Phase 5.0Amp Surface Mount Bridge Rectifier H.

HBN506 Features

* Surface mount bridge, small package;
* Ideal for printed circuit boards;
* Glass passivated chip junction;
* High surge current capability;
* High heat dissipation capability;
* Low profile package;
* Low forward voltage drop;
* Plastic package has Underwrites Labor

HBN506 Applications

* of information, products or circuits described in the datasheets. 4- In no event shall SMC Diode Solutions be liable for any failure in a semiconductor device or any secondary damage resulting from use at a value exceeding the absolute maximum rating. 5- No license is granted by the datasheet(s) und

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HBN506, HBN502. Please refer to the document for exact specifications by model.

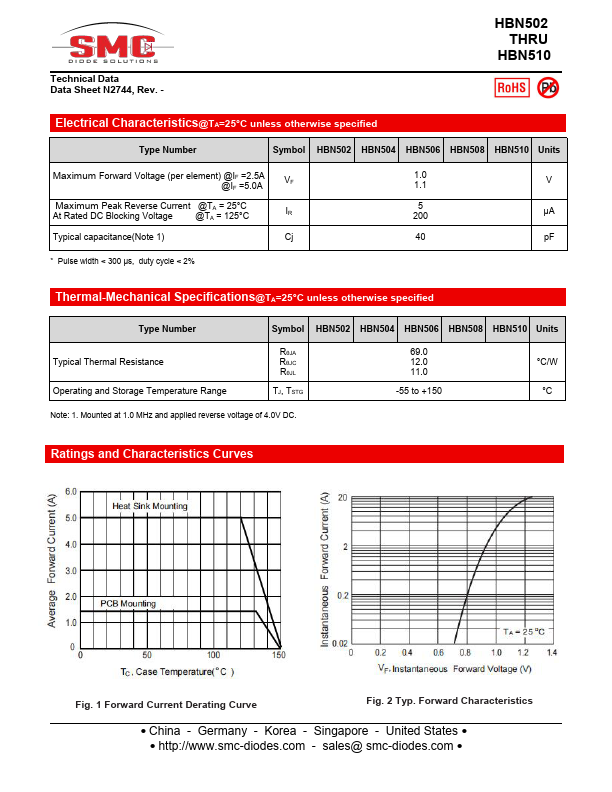

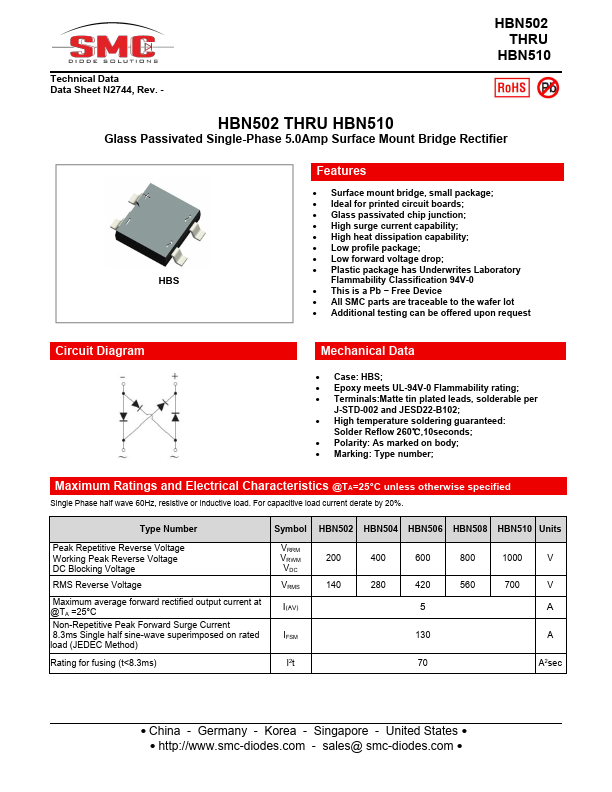

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HBN506, HBN502
Manufacturer
SMC Diode
File Size
259.37 KB
Datasheet
HBN502-SMCDiode.pdf
Description
Glass Passivated Single-Phase 5.0Amp Surface Mount Bridge Rectifier
Note
This datasheet PDF includes multiple part numbers: HBN506, HBN502.
Please refer to the document for exact specifications by model.
