20SQ045 - SCHOTTKY BARRIER RECTIFIER

Name: 20SQ045
SKU: 20SQ045-1593490

SMC Diode

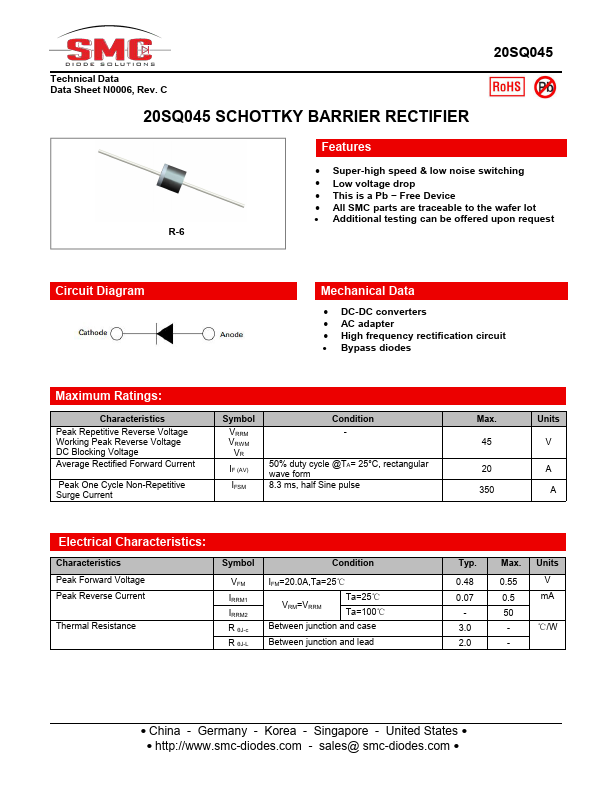

The 20SQ045 by SMC Diode is a SCHOTTKY BARRIER RECTIFIER. Below is the official datasheet preview.

Datasheet Details

Part number	20SQ045
Manufacturer	SMC Diode
File Size	831.67 KB
Description	SCHOTTKY BARRIER RECTIFIER
Datasheet	20SQ045-SMCDiode.pdf

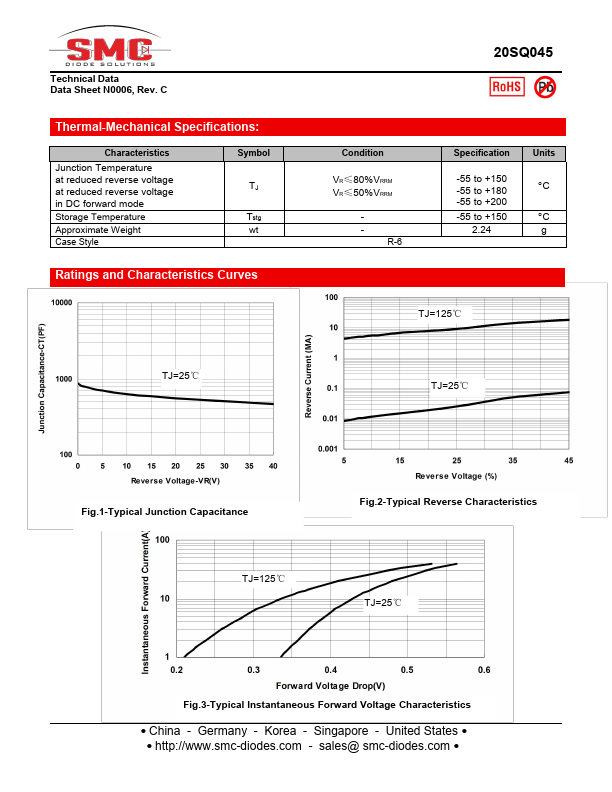

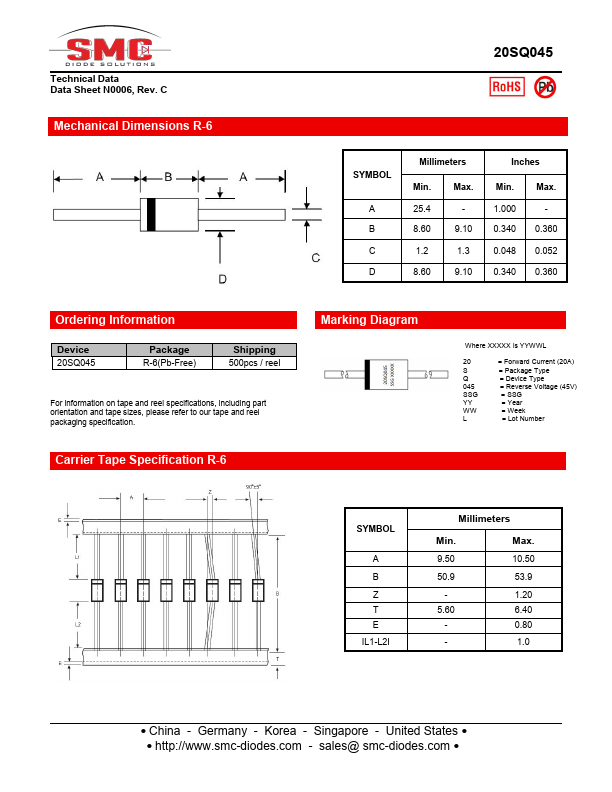

Additional preview pages of the 20SQ045 datasheet.

Super-high speed & low noise switching.
Low voltage drop.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request R-6 Circuit Diagram Mechanical Data.
DC-DC converters.
AC adapter.
High frequency rectification circuit.
Bypass diodes Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Curre.
