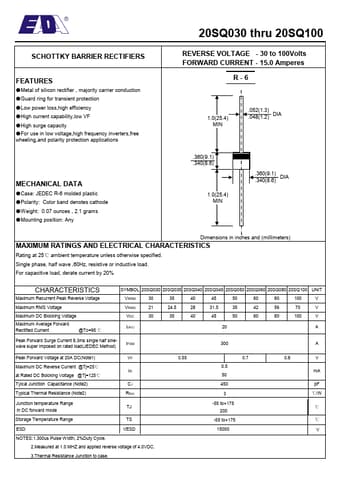

20SQ030 thru 20SQ100
SCHOTTKY BARRIER RECTIFIERS REVERSE VOLTAGE - 30 to 100Volts FORWARD CURRENT - 15.0 Amperes R-6
FEATURES
●Metal of silicon rectifier , majority carrier conduction ●Guard ring for transient protection ●Low power loss,high efficiency ●High current capability,low VF ●High surge capacity ●For use in low voltage,high frequency inverters,free wheeling,and polarity protection applications .360(9.1) .340(8.6) 1.0(25.4) MIN
.052(1.3) DIA .048(1.2)
2100
.360(9.1) DIA .340(8.6)
MECHANICAL DATA
●Case: JEDEC R-6 molded plastic ●Polarity: Color band denotes cathode ●Weight: 0.07 ounces , 2.1 grams ●Mounting position: Any 1.0(25.4) MIN
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
