20SQ060, 20SQ030 Schottky Barrier Rectifiers

20SQ060 Description

20SQ030 thru 20SQ100 SCHOTTKY BARRIER RECTIFIERS REVERSE VOLTAGE - 30 to 100Volts FORWARD CURRENT - 15.0 Amperes R-6 .

20SQ060 Features

* Metal of silicon rectifier , majority carrier conduction
* Guard ring for transient protection
* Low power loss,high efficiency
* High current capability,low VF
* High surge capacity
* For use in low voltage,high frequency inverters,free wheeling,and polarity protection applicati

20SQ060 Applications

* .360(9.1) .340(8.6) 1.0(25.4) MIN .052(1.3) DIA .048(1.2) 2100 .360(9.1) DIA .340(8.6) MECHANICAL DATA
* Case: JEDEC R-6 molded plastic
* Polarity: Color band denotes cathode
* Weight: 0.07 ounces , 2.1 grams
* Mounting position: Any 1.0(25.4) MIN Dimensions in inches and (millimeter

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 20SQ060, 20SQ030. Please refer to the document for exact specifications by model.

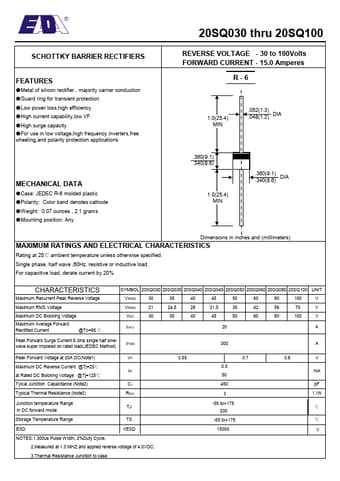

datasheet Preview Page 2

Datasheet Details

Part number
20SQ060, 20SQ030
Manufacturer
EADA
File Size
178.23 KB
Datasheet
20SQ030_EADA.pdf
Description
Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: 20SQ060, 20SQ030.
Please refer to the document for exact specifications by model.
